HW
Downflow Unit Heater
TPI

Downflow Unit Heater

H1H2610CA1
Price $1,303.50
SKU: H1H2610CA1
BTU /hr.: 34130 BTU
Fuel Type: Electric
Volts: 240 V
Color: Gray
Brand: TPI
Resources

TPI Downflow Unit Heater H1H2610CA1 Resources:

TPI Downflow Unit Heater H1H2610CA1 Specification

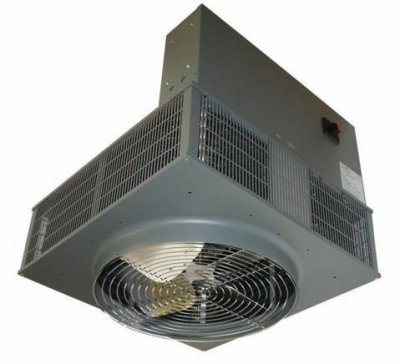

Down Flow Unit Heaters - TPI 10 KW 240V Downflow Unit Heater - 34130 BTU - H1H2610CA1

Bring the warmth of sunshine indoors with H1H2610CA1 which is a perfect blend of highest quality, exceptional service and value. TPI presents 10 KW 240V Downflow Unit Heater with 34130 Btu capacity. It has 16 ga. steel cabinet with epoxy powder coated finish. The heater is corrosion resistant element with steel sheath and steel spiral fins. The heater is equipped with In-built disconnect.

TPI Downflow Unit Heater H1H2610CA1 Specifications
BTU34130
KW10
Volts240
Phase1
AMPS41.7
Control volts24
Temp. Rise26 deg F
CFM1200
Weight75 Lbs.
UPC686334715904

TPI Downflow Unit Heater H1H2610CA1 Features:

    CONSTRUCTION:
  • 16 ga. steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door
  • OSHA guards standard with all models
  • HEATING ELEMENT:
  • Corrosion resistant element with steel sheath and steel spiral fins
  • OVERHEAT PROTECTION:
  • This unit equipped with manual reset limit controls to de-energize the heater should an over-temperature situation occur.
  • FAN and MOTOR:
  • Totally enclosed, 1 speed, 1 phase permanently lubricated, thermally protected motors with this 7.5 kw unit.
  • Axial flow fan blade - 1570 RPM max.
  • This model is equipped with Fan Purge which allows Fan to operate after elements are de-energized to purge residual heat
  • TEMPERATURE CONTROLS:
  • This 277v unit have In-Built 24 volt transformer for low voltage remote thermostat application.
  • DISCONNECT SWITCH:
  • The model equipped with In-Built Disconnect.
  • INSTALLATION:
  • Unit can be mounted using optional mounting bracket or field constructed angle iron bracket
  • Not recommended for mounting with threaded rod or chain.
  • UL Listed
Accessories
Ceiling Mount Bracket
TPI
Price $81.40
