Downflow Unit Heater
TPI

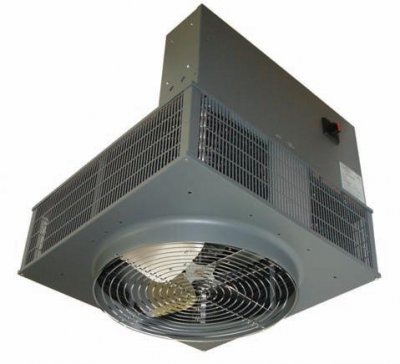

Downflow Unit Heater

H3H2605CA1
Price $740.30
SKU: H3H2605CA1
BTU /hr.: 17065 BTU
Fuel Type: Electric
Volts: 240 V
Color: Gray
Brand: TPI
Resources

TPI Downflow Unit Heater H3H2605CA1 Resources:

TPI Downflow Unit Heater H3H2605CA1 Specification

Down Flow Unit HeatersTPI 5 KW, 240V Downflow Unit Heater - H3H2605CA1

5 KW Downflow Unit Heater comes with 17065 BTU and 16 ga. steel cabinet with epoxy powder coated finish. TPI H3H2605CA1 features control compartment with a hinged and latched access door, OSHA approved, corrosion resistant element with steel sheath and steel spiral fins, manual reset limit controls to de-energize the heater and fan purge that allows fan to operate after elements are de-energized to purge residual heat.

Downflow Unit Heater - TPI H3H2605CA1 Specifications
Wattage5 KW
BTU17065
Voltage240
Phase3
Ampere12
Control Voltage24
Temperature Rise34 F
CFM490
Dimensions15"H x 20-1/2"W x 20-1/2"D
Weight75 Lbs.
UPC686334715799

Downflow Unit Heater - TPI H3H2605CA1 Features:

CONSTRUCTION:

  • 16 ga. steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door
  • OSHA guards standard with all models

HEATING ELEMENT:

  • Corrosion resistant element with steel sheath and steel spiral fins

OVERHEAT PROTECTION:

  • All units come equipped with manual reset limit controls to de-energize the heater should an over-temperature situation occur.

FAN and MOTOR:

  • Totally enclosed, 1 speed, 1 phase permanently lubricated, thermally protected motors with unit bearings
  • Axial flow fan blade - 1570 RPM max.
  • All Models equipped with Fan Purge which allows Fan to operate after elements are de-energized to purge residual heat

TEMPERATURE CONTROLS:

  • In-Built 24 volt transformer for low voltage remote thermostat application

DISCONNECT SWITCH:

  • This unit is equipped with In-Built Disconnect

INSTALLATION:

  • Unit can be mounted using optional mounting bracket or field constructed angle iron bracket
  • Not recommended for mounting with threaded rod or chain
