HW

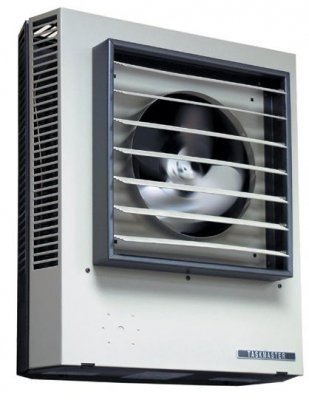

Fan Forced Suspended Unit Heater
TPI

Fan Forced Suspended Unit Heater

P3P5150CA1N
Price $4,112.90
Please select from the Options below
Control Option
SKU: P3P5150CA1N
BTU /hr.: 170600 BTU
Fuel Type: Electric
Volts: 480 V
Color: Ivory
Brand: TPI
Resources

TPI Fan Forced Suspended Unit Heater P3P5150CA1N Resources:

TPI Fan Forced Suspended Unit Heater P3P5150CA1N Specifications

50KW 480V 3P 5100 Series Unit Heater produces an amazing output of 170.6 BTU/hr. This TPI model P3P5150CA1N has heat stratification thermostat. It is constructed using 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance. This unit completes with its Louvers are individually adjustable for directional control of air flow up to 15 deg from straight horizontal.

TPI Fan Forced Suspended Unit Heater - P3P5150CA1N Specifications
Wattage50 KW
BTU's170.6 BTU
VOLTS480V
Phase3 Ph
AMPS60.3
Control Voltage24
Temp Rise deg F51/56 F
Air Throw50'
CFM3100/2800
Recom'd Mounting Ht.Hor- 15', Ver- 22'
Dimension34"H x 29-1/4"W x 10-1/16"D
Weight120 lbs.
UPC686334645522
ListedETL Listed

Fan Forced Suspended Unit Heater - P3P5150CA1N Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance

HEATING ELEMENT:

  • Spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow

OVERHEAT PROTECTION:

  • 3.3 - 50 KW units come equipped with automatic reset type limit

FAN and MOTOR:

  • Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 KW - 20 KW models

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow up to 15 deg from straight horizontal
  • Optional diffusers available for down flow (vertical discharge) applications

TEMPERATURE CONTROLS:

  • Optional low voltage and line voltage thermostats available with an adjustable temperature range of 50 deg -90 deg F
  • Units with model numbers ending in CA1 are factory wired for low voltage controls

INSTALLATION:

  • Unit Heaters can be mounted for horizontal or vertical discharge
  • 5100 series suggested for applications up to 6000 feet; for applications up to or above 6000 feet see UH series.

FIELD INSTALLED OPTIONS:

  • In-Built or wall mounted temperature control thermostats - low or line voltage
  • Summer fan switch to operate the fan only.
  • Power disconnect switch
  • 60-100KW units can be multiple stage when used with optional SC5100 and C1025 stat
  • Heat stratification thermostat
Accessories
Anemostat Diffuser
TPI
Price $404.80
Radial Diffuser
TPI
Price $352.00
Vertical Mount Bracket
TPI
Price $182.05
Thermostat
TPI
Price $128.70
Wall Thermostat
TPI
Price $136.95
Wall Thermostat
TPI
Price $282.15
Thermostat
TPI
Price $87.45
Wall Thermostat
TPI
Price $141.35
Related ITems

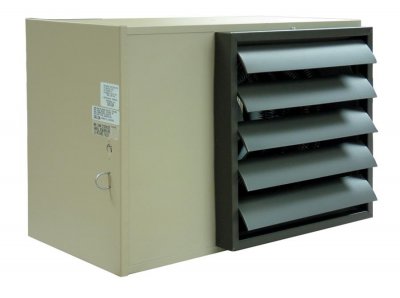

Horizontal Fan Forced Heater
