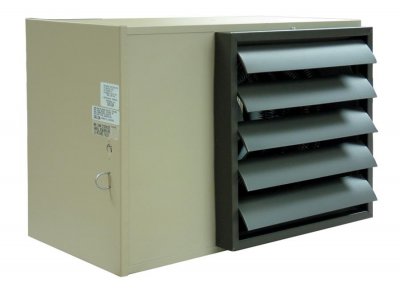

Horizontal Fan Forced Heater
TPI

Horizontal Fan Forced Heater

P3PUH30CA1
Price $6,806.00 $4,355.84
Please select from the Options below
Factory Installed Controls
SKU: P3PUH30CA1
BTU /hr.: 102390 BTU
Fuel Type: Electric
Volts: 480 V
Color: Beige
Brand: TPI
Resources

TPI Fan Forced Horizontal Discharge Unit Heater P3PUH30CA1 Resources:

TPI Fan Forced Horizontal Discharge Unit Heater P3PUH30CA1 Specifications

TPI Commercial Fan Forced Wall Heaters can easily produce the amazing output of 102390 BTU. This model P3PUH30CA1 quipped with automatic reset type limit controls. This model can be mounted at a maximum of 45 degrees off of horizontal. It uses circular copper clad steel element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade and bring desired warmth to you.

TPI Fan Forced Horizontal Discharge Unit Heater - P3PUH30CA1 Specifications
Wattage30 KW
BTU's102390 BTU
VOLTS480V
Phase3 Ph
AMPS36.1
Control Voltage24
Temp Rise deg F70 F
Air Throw56'
CFM1350
Recom'd Mounting Ht.13'
Dimension22"W x 11"D x 15"H
Weight60 lbs.
UPC686334688376
ListedETL Listed

Fan Forced Horizontal Discharge Unit Heater - P3PUH30CA1 Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation & maintenance

HEATING ELEMENT:

  • Circular copper clad steel element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade

OVERHEAT PROTECTION:

  • Equipped with automatic reset type limit controls to de-energize the

FAN and MOTOR:

  • Heater should an over-temperature situation occur.
  • Sleeve bearings mounted with rubber insulators to minimize vibration and noise
  • Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard.

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow and the louver assembly can be repositioned in the field from down air flow to right or left directional air flow.

TEMPERATURE CONTROLS:

  • 20 KW through 48 KW units and all 480V have built in 24 volt transformer for low voltage remote thermostat application
  • 25 KW through 48 KW models available in 2-stage on special order

INSTALLATION:

  • UH Series may be mounted at a maximum of 45 degrees off of horizontal
  • On all models up to 15 KW, 1/4" threaded rod may be used for mounting; on all models 20 KW and above 5/16" threaded rod may be used
  • Optional wall / ceiling mounting brackets available for all units
  • Suitable for applications up to 13,000 feet

FACTORY INSTALLED OPTIONS:

  • 24 volt transformer on 3 KW to 15KW units to convert from line voltage to low voltage remote thermostat operation (non CA1 models only)
  • Summer fan switch to operate the fan only.
  • Fan Delay Switch to purge all residual heat from the unit after the heating element has cycled off
  • Powder coated Epoxy finish is available -
  • Disconnect switch
