HW
Fan Forced Unit Heater
TPI

Fan Forced Unit Heater

F3FUH15C03
Price $3,636.00 $2,327.04
Please select from the Options below
Factory Installed Controls
SKU: F3FUH15C03
BTU /hr.: 51200 BTU
Fuel Type: Electric
Volts: 208 V
Color: Ivory
Brand: TPI
Resources

TPI 15 KW Fan Forced Horizontal Discharge Unit Heater F3FUH15C03 Resources:

TPI 15 KW Fan Forced Horizontal Discharge Unit Heater F3FUH15C03 Specification

Fan Forced Wall Heaters - 15 KW Fan Forced Horizontal Discharge Unit Heater - TPI F3FUH15C03 - 51200 BTU

Get 15 KW Fan Forced Horizontal Discharge Unit Heater, TPI F3FUH15C03, with 51200 BTU from our online store at a remarkable price. This user-friendly unit is equipped with 24 volt transformer to convert from line voltage to low voltage remote thermostat operation and fan delay switch to purge all residual heat from the unit after the heating element has cycled off. The louvers are individually adjustable for directional control of air flow and the louver assembly can be repositioned in the field from down air flow to right or left directional air flow.

TPI 15 KW Fan Forced Horizontal Discharge Unit Heater F3FUH15C03 Specifications
UPC686334644822
KW15
BTU51200
VOLTS208
PHASE3
AMPS41.7
Control Voltage208
Temperature Rise59 F
Air Throw45'
CFM800
Recommended Mounting Height10'
Weight54 Lbs.

TPI 15 KW Fan Forced Horizontal Discharge Unit Heater F3FUH15C03 Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment with a hinged and latched access door simplifying wiring, installation & maintenance.

HEATING ELEMENT:

  • Circular copper clad steel element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade.

OVERHEAT PROTECTION:

  • Equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur.

FAN and MOTOR:

  • Totally enclosed, single phase, permanently lubricated and thermally protected motors with sleeve bearings and mounted with rubber insulators to minimize vibration and noise.
  • Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard.

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow and the louver assembly can be repositioned in the field from down air flow to right or left directional air flow.

INSTALLATION:

  • Can be mounted at a maximum of 45 degrees off of horizontal
  • 1/4" threaded rod may be used for mounting
  • Optional wall / ceiling mounting brackets
  • Suitable for applications up to 13,000 feet

FACTORY INSTALLED OPTIONS:

  • 24 volt transformer to convert from line voltage to low voltage remote thermostat operation.
  • Summer fan switch to operate the fan only.
  • Fan Delay Switch to purge all residual heat from the unit after the heating element has cycled off
  • Powder coated Epoxy finish
  • Disconnect switch
Accessories
Thermostat Kit
TPI
Price $128.00 $81.92
Related ITems

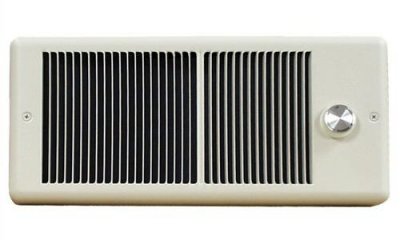

Low Profile Fan Forced Wall Heater
