Fan Forced Unit Heater
TPI

Fan Forced Unit Heater

F3FUH20CA1
Price $2,078.45
Please select from the Options below
Factory Installed Controls
SKU: F3FUH20CA1
BTU /hr.: 68300 BTU
Fuel Type: Electric
Volts: 208 V
Color: Ivory
Brand: TPI
Resources

TPI 20 KW Fan Forced Horizontal Discharge Unit Heater F3FUH20CA1 Resources:

TPI 20 KW Fan Forced Horizontal Discharge Unit Heater F3FUH20CA1 Specification

Fan Forced Wall Heaters - 20 KW Fan Forced Horizontal Discharge Unit Heater - TPI F3FUH20CA1 - 68300 BTU

We bring you 20 KW Fan Forced Horizontal Discharge Unit Heater manufactured by TPI. Model F3FUH20CA1 comes with 68300 BTU, built-in 24 volt transformer for low voltage remote thermostat application and circular copper clad steel element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade. This amazing unit is especially suited for dirty and dusty environments and for high altitude applications.

TPI 20 KW Fan Forced Horizontal Discharge Unit Heater F3FUH20CA1 Specifications
UPC686334688314
KW20
BTU68300
VOLTS208
PHASE3
AMPS55.6
Control Voltage24
Temperature Rise47 / 53 F
Air Throw56'
CFM1350
Recommended Mounting Height13'
Weight55 Lbs.

TPI 20 KW Fan Forced Horizontal Discharge Unit Heater F3FUH20CA1 Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment with a hinged and latched access door simplifying wiring, installation & maintenance.

HEATING ELEMENT:

  • Circular copper clad steel element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade.

OVERHEAT PROTECTION:

  • Equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur.

FAN and MOTOR:

  • Totally enclosed, single phase, permanently lubricated and thermally protected motors with sleeve bearings and mounted with rubber insulators to minimize vibration and noise.
  • Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard.

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow and the louver assembly can be repositioned in the field from down air flow to right or left directional air flow.

TEMPERATURE CONTROLS

  • Built-in 24 volt transformer for low voltage remote thermostat application.

INSTALLATION:

  • Can be mounted at a maximum of 45 degrees off of horizontal
  • 5/16" threaded rod may be used for mounting
  • Optional wall / ceiling mounting brackets
  • Suitable for applications up to 13,000 feet

FACTORY INSTALLED OPTIONS:

  • Summer fan switch to operate the fan only.
  • Fan Delay Switch to purge all residual heat from the unit after the heating element has cycled off
  • Powder coated Epoxy finish
  • Disconnect switch
Accessories
Thermostat Kit
TPI
Price $52.25
Related ITems

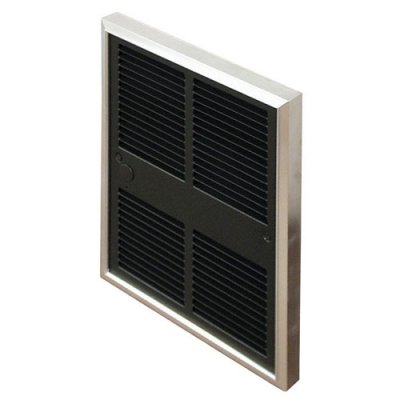

Fan Forced Wall Heater
