HW
Horizontal Fan Forced Heater
TPI

Horizontal Fan Forced Heater

H1HUH12C03
Price $1,376.65
Please select from the Options below
Factory Installed Controls
SKU: H1HUH12C03
BTU /hr.: 42600 BTU
Fuel Type: Electric
Volts: 240 V
Color: Beige
Brand: TPI
Resources

TPI Horizontal Fan Forced Heater H1HUH12C03 Resources:

TPI Horizontal Fan Forced Heater H1HUH12C03 Specification

Electric Forced Air Heaters - TPI 12.5KW 240V Fan Forced Horizontal Discharge Unit Heater - 42600 BTU - H1HUH12C03

Find out details of TPI 12.5KW 240V Fan Forced Horizontal Discharge Unit Heater. Model H1HUH12C03 is a 42600 Btu unit which has Circular copper clad steel element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade. This unit comes with 18 ga. steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation & maintenance.

TPI Fan Forced Washdown Unit Heater H1HUH12C03 Specifications
BTU42600
KW12.5
Volts240
Phase1
AMPS52.1
Control volts240
Temp. Rise49 deg F
Air throw45'
CFM800
Mounting Height10'
Weight45 Lbs.
UPC686334644709

TPI Fan Forced Washdown Unit Heater H1HUH12C03 Features:

    CONSTRUCTION:
  • 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance
  • HEATING ELEMENT:
  • Circular copper clad steel element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade
  • OVERHEAT PROTECTION:
  • This unit come equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur.
  • FAN and MOTOR:
  • Mounted with rubber insulators to minimize vibration and noise
  • Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard.
  • LOUVER ASSEMBLY:
  • Louvers are individually adjustable for directional control of air flow and the louver assembly can be repositioned in the field from down air flow to right or left directional air flow.
  • INSTALLATION:
  • It may be mounted at a maximum of 45 degrees off of horizontal
  • 1/4" threaded rod may be used for mounting
  • Optional wall / ceiling mounting brackets available.
  • Suitable for applications up to 13, 000 feet
  • FACTORY INSTALLED OPTIONS:
  • 24 volt transformer on this unit to convert from line voltage to low voltage remote thermostat operation
  • Summer fan switch to operate the fan only.
  • Fan Delay Switch to purge all residual heat from the unit after the heating element has cycled off
  • Powder coated Epoxy finish is available
  • Disconnect switch
  • ETL listed
Accessories
Thermostat Kit
TPI
Price $52.25
Related ITems
Fan Forced Suspended Unit Heater
TPI
SKU: P3P5110CA1N
BTU /HR.: 34100 BTU
Fuel Type: Electric
Volts: 480 V
Color: Ivory

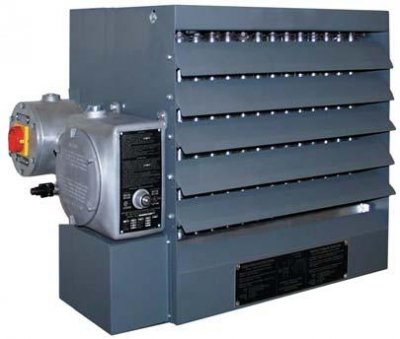

Hazardous Location Fan Forced Unit Heater
