HW
Horizontal Fan Forced Heater
TPI

Horizontal Fan Forced Heater

H3HUH15C03
Price $1,514.70
Please select from the Options below
Factory Installed Controls
SKU: H3HUH15C03
BTU /hr.: 51200 BTU
Fuel Type: Electric
Volts: 240 V
Color: Beige
Brand: TPI
Resources

TPI Horizontal Fan Forced Heater H3HUH15C03 Resources:

TPI Horizontal Fan Forced Heater H3HUH15C03 Specification

Forced Air HeatersTPI 15 KW, 240V Fan Forced Horizontal Discharge Unit Heater - H3HUH15C03

Get 15 KW Fan Forced Horizontal Discharge Unit Heater, TPI H3HUH15C03, with 51200 BTU from our online store at a remarkable price. This user-friendly unit is equipped with 24 volt transformer to convert from line voltage to low voltage remote thermostat operation and fan delay switch to purge all residual heat from the unit after the heating element has cycled off. The louvers are individually adjustable for directional control of air flow and the louver assembly can be repositioned in the field from down air flow to right or left directional air flow.

Fan Forced Horizontal Discharge Unit Heater - TPI H3HUH15C03 Specifications
Wattage15 KW
BTU51200
Voltage240
Phase3
Ampere36.1
Control Voltage240
Temperature Rise59 F
Air Throw45'
CFM800
Required Mounting Height10'
Dimensions11"L x 15"W x 22"H
Weight54 Lbs.
UPC686334644877

Fan Forced Horizontal Discharge Unit Heater - TPI H3HUH15C03 Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation & maintenance

HEATING ELEMENT:

  • Circular copper clad steel element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade

OVERHEAT PROTECTION:

  • All units come equipped with automatic reset type limit controls to de-energize the

FAN and MOTOR:

  • Heater should an over-temperature situation occur. Totally enclosed, single phase, permanently lubricated, thermally protected motors with unit bearings
  • Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard.

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow and the louver assembly can be repositioned in the field from down air flow to right or left directional air flow.

INSTALLATION:

  • UH Series may be mounted at a maximum of 45 degrees off of horizontal
  • Unit has 1/4" threaded rod may be used for mounting
  • Optional wall / ceiling mounting brackets available for all units
  • Suitable for applications up to 13, 000 feet

FACTORY INSTALLED OPTIONS:

  • 24 volt transformer on this units to convert from line voltage to low voltage remote thermostat operation (non CA1 models only)
  • Summer fan switch to operate the fan only.
  • Fan Delay Switch to purge all residual heat from the unit after the heating element has cycled off
  • Powder coated Epoxy finish is available
  • Disconnect switch
Accessories
Thermostat Kit
TPI
Price $52.25
Related ITems
Horizontal Fan Forced Heater
TPI
SKU: H1HUH03003
BTU /HR.: 11200 BTU
Fuel Type: Electric
Volts: 240 V
Color: Gray
Fan Forced Suspended Unit Heater
TPI
SKU: F1F5103N
BTU /HR.: 11200 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray
Fan Forced Unit Heater
TPI
SKU: F2F5107CA1L
BTU /HR.: 25600 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray

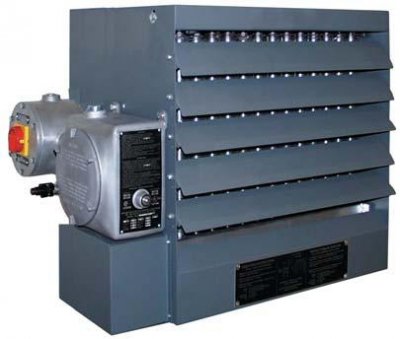

Hazardous Location Fan Forced Unit Heater
