HW
Hazardous Location Fan Forced Unit Heater
TPI

Hazardous Location Fan Forced Unit Heater

HLA122083607.524
Price $16,101.00 $10,304.64
Please select from the Options below
Factory Installed Controls
SKU: HLA122083607.524
BTU /hr.: 25600 BTU
Fuel Type: Electric
Volts: 208 V
Brand: TPI
Resources

TPI Hazardous Location Fan Forced Unit Heater HLA122083607.524 Resources:

TPI Hazardous Location Fan Forced Unit Heater HLA122083607.524 Specifications

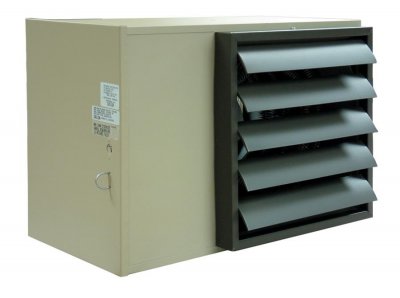

We present you 7500 W, 25600 BTU Hazardous Location Fan Forced Unit Heater, model HLA122083607.524, manufactured by TPI. Manual Reset capillary type high limit provides high temperature regulation and is rated for 6,000 cycles of service. Box lugs are furnished for field connections within an approved enclosure. Ethylene Glycol to water mixture uses a heat transfer fluid in the heater core, providing -49 deg. F. (-45 deg. C) freeze damage protection.

Hazardous Location Fan Forced Unit Heater - TPI HLA122083607.524 Specifications
BTU25600
Wattage7500 W
Voltage208 V
Control Volts24 V
Product Weight167 Lbs.
Phase3
Temperature Rise41.4 F
CFM580
Amperage22.3
Air Throw24'
Recommended Mounting Height8'
UPC686334734103

Hazardous Location Fan Forced Unit Heater - TPI HLA122083607.524 Features:

  • Permanently sealed, liquid to air, finned tube heat exchanger core.
  • Ethylene Glycol to water mixture uses a heat transfer fluid in the heater core, providing -49 deg. F. (-45 deg. C) freeze damage protection.
  • Manual Reset capillary type high limit provides high temperature regulation and is rated for 6,000 cycles of service.
  • 24v transformer and contactor
  • Pressure relief valve with cintered metal mesh flame arrestor.
  • 14 ga. steel cabinet with epoxy powder coated finish contains heater core, motor, and fan assembly.
  • Narrow gap safety fan guard shields all moving parts.
  • Adjustable louvers allow directional control of air flow.
  • Box lugs furnished for field connections within an approved enclosure.
  • ABS Type Approved
  • cETLus Listed
