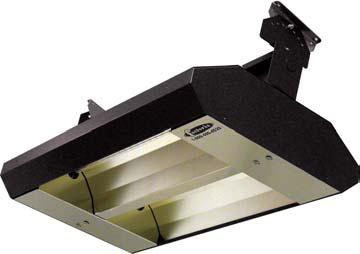

Mul-T-Mount Infrared Heater
Fostoria

Mul-T-Mount Infrared Heater

22290TH240V
Price $430.10
SKU: 22290TH240V
BTU /hr.: 10922 btu
Fuel Type: Electric
Volts: 240V
Color: Brown
Brand: Fostoria

Commercial / Warehouse Heaters - Mul-T-Mount Quartz Electric Infrared Heater - Fostoria 222-90-TH-240V - 10,922 BTU - 240V

Introducing Mul-T-Mount 2 Lamp Electric Infrared Heater with 2 clear quartz lamps and 10,922 BTU. Fostoria 222-90-TH-240V models are best used in patio areas, bus shelters, airport terminals, workstations, lobby entrances, etc. The infrared heater is available in two different housing materials: 20-gage Stainless Steel or Galvannealed Steel painted with a high temperature powder coated brown finish. The infrared heater provides 90 degree symmetrical reflector patterns. The unit can be tilted 0 to 45 degree horizontally with the help of a built-in surface mounting bracket. UL / C-UL listed for suspended, totally exposed outdoor, and indoor comfort heating applications, it has a gold anodized one-piece reflector that offers various distribution of infrared heat and operates on single-phase. Infrared heating systems heat people and objects to a desired temperature level and creates a safe, clean atmosphere.

<
Mul-T-Mount Electric Infrared Heater - Specifications
Voltage240V
Type Indoor / Outdoor
BTU's10,922
KW3.2
Phase1
ColorBrown
Reflector Patterns90 degree symmetrical
No. of Lamps2 Clear Quartz
Dimension 24" L x 15" W x 10-7/8" H x 23-1/2" Mtg. Ctr.
Weight 20 lbs.
Mounting Suspended, Recessed and Totally Exposed Outdoors
Agency Compliance UL, CUL
Repl. Heating Element63016249

Mul-T-Mount Electric Infrared Heater Features :

  • Asymmetrical and symmetricalreflector pattern
  • 0 to 45° tilt
  • UL / C-UL listed
  • Includes 2 clear quartz lamps
  • 10,922 BTU
  • Available in 208 V, 240 V, 277 V and 480 V
  • Housing materials: Brown / Stainless Steel
  • Operates on single-phase operation
  • Zone control flexibility
  • Highly engineered and proven
  • Replacement element: 63016249
Accessories
Related ITems
Portable Quartz Infrared Heater
TPI
SKU: CH64241C
BTU /HR.: 9727 - 19454 BTU
Fuel Type: Electric
Volts: 240 V
Mul-T-Mount Infrared Heater
Fostoria
SKU: 342A60TH240V
BTU /HR.: 17065 btu
Fuel Type: Electric
Volts: 240 V
Color: Brown
Stainless Steel Mul-T-Mount Infrared Heater
Fostoria
SKU: 22260THSS277V
BTU /HR.: 10922 btu
Fuel Type: Electric
Volts: 277V
Color: Stainless Steel
Mul-T-Mount Infrared Heater
TPI
SKU: 34390THSS208V
BTU /HR.: 25298 BTU
Fuel Type: Electric
Volts: 208 V
Color: Stainless Steel

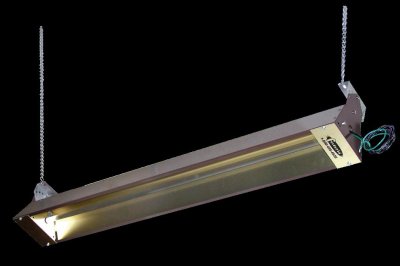

Quartz Infrared Heater
