HW
Packaged Duct Heater
TPI

Packaged Duct Heater

PD15121823
Price $1,566.00 $1,002.24
SKU: PD15121823
Fuel Type: Electric
Volts: 240 V
Color: Galvanized Steel
Brand: TPI
Resources

TPI Packaged Duct Heater PD15121823 Resources:

TPI Packaged Duct Heater PD15121823 Specifications

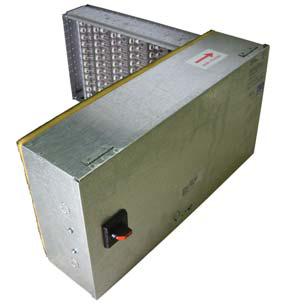

We have 15 KW three phase packaged duct heater, TPI PD15121823, with 2 step controls. It is manufactured by reputed brand TPI. This unit has galvanized steel element rack and compartment with 1/2" fiberglass insulation and hinged cover. It has door interlock disconnect switch and differential pressure fan inter-lock switch. The heater also includes a 24 V step down control transformer.

15 KW Packaged Duct Heater TPI PD15121823 Specifications
Power15 KW
Voltage240
Phase3
Duct Height12" A
Duct Width18" W
Dimensions9-1/8" C x 6-1/2" E x 26" M
Amperage36.2
Control Step2
UPC686334617192
Weight33 Lbs.

15 KW Packaged Duct Heater TPI PD15121823 Features:.

  • Galvanized Steel Element Rack - Always 1" shorter than duct height and 1/2" shorter than duct width to allow insertion clearance
  • Galvanized Steel Compartment with 1/2" fiberglass Insulation & Hinged Cover
  • Door Interlock Disconnect Switch
  • Primary Automatic Reset Temp Limiting Control
  • Load Carrying Secondary over Temperature Protective Device
  • Definite Purpose Magnetic Contactor
  • Differential Pressure Fan Inter-lock Switch
  • Step Down Control Transformer / 24 volt
  • Permanently Attached Wiring Diagram on inside of Terminal Compartment Cover
