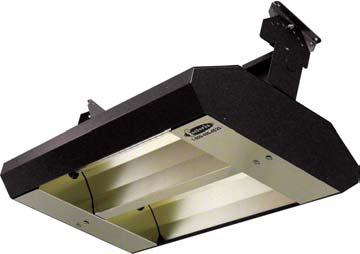

Stainless Steel Mul-T-Mount Infrared Heater
Fostoria

Stainless Steel Mul-T-Mount Infrared Heater

22260THSS208V
Price $1,248.00 $798.72
SKU: 22260THSS208V
BTU /hr.: 10922 btu
Fuel Type: Electric
Volts: 208V
Color: Stainless Steel
Brand: Fostoria

Commercial / Warehouse Heaters - Mul-T-Mount Quartz Electric Infrared Heater - 222-60-THSS-208V - 10,922 BTU - 208 V

Introducing Mul-T-Mount 2 Lamp Electric Infrared Heater with 2 clear quartz lamps and 10,922 BTU. Fostoria 22260THSS208V models are best used in patio areas, bus shelters, airport terminals, workstations, lobby entrances, etc. The infrared heater is available in two different housing materials: 20-gage Stainless Steel or Galvannealed Steel painted with a high temperature powder coated brown finish. The infrared heater provides a 60 degree symmetrical reflector pattern. The unit can be tilted 0 to 45 degree horizontally with the help of a built-in surface mounting bracket. UL / C-UL listed for suspended, totally exposed outdoor, and indoor comfort heating applications, it has a gold anodized one-piece reflector that offers various distribution of infrared heat and operates on single-phase. Infrared heating systems heat people and objects to a desired temperature level and creates a safe, clean atmosphere. You can select voltage, color, and reflector patterns.

Mul-T-Mount Electric Infrared Heater - Specifications
Voltage208V
Type Indoor / Outdoor
BTU's10,922
KW3.2
Phase1
ColorStainless Steel
Reflector Patterns60 degrees symmetrical
No. of Lamps2 Clear Quartz
Dimension 24" L x 15" W x 10-7/8" H x 23-1/2" Mtg. Ctr.
Weight 20 lbs.
Mounting Suspended, Recessed and Totally Exposed Outdoors
Agency Compliance UL, CUL
Repl. Heating Element63016209

Mul-T-Mount Electric Infrared Heater Features :

  • Symmetrical reflector pattern
  • 0 to 45° tilt
  • UL / C-UL listed
  • Includes 2 clear quartz lamps
  • 10,922 BTU
  • Available in 208 V
  • Housing materials: Stainless Steel
  • Operates on single-phase operation
  • Zone control flexibility
  • Highly engineered and proven
  • Replacement element: 6301609
