Washdown Unit Heater
TPI

Washdown Unit Heater

F1F5503T
Price $6,466.00 $4,138.24
Please select from the Options below
Disconnect Switch
SKU: F1F5503T
BTU /hr.: 11200 BTU
Fuel Type: Electric
Volts: 208 V
Color: Stainless Steel
Brand: TPI
Resources

TPI 3.3KW Single Pole Washdown Unit Heater F1F5503T Resources:

TPI 3.3KW Single Pole Washdown Unit Heater F1F5503T Specifications

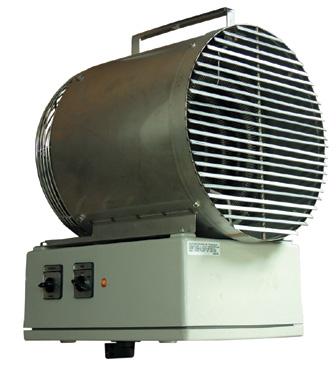

Presenting 3.3KW Single Pole Washdown Unit Heater made by TPI. Model no F1F5503T is made using corrosion-resistant material that makes this unit ideal for industrial heating applications. The unit has Automatic reset thermal cutout for your safety. It is made with all In-Built controls and safety temperature controls wired in a non-metallic Nema 4x control panel with single-point power connections.

TPI 3.3KW Single Pole Washdown Unit Heater F1F5503T Specifications
Power3.3 KW
BTU's11200
Volts208
Phase1
Amps15.9
Control Volts24
Temp Rise26 F
CFM400
Air Throw20'
Weight58 Lbs.
UPC686334713047

TPI 3.3KW Single Pole Washdown Unit Heater F1F5503T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout.
  • Totally enclosed motor.
  • Pilot light (power on indicator)
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Minimum mounting height is 7' for all units
  • ABS Type Approved
