HW
Washdown Unit Heater
TPI

Washdown Unit Heater

F3F5503T
Price $2,566.85
Please select from the Options below
Disconnect Switch
SKU: F3F5503T
BTU /hr.: 11200 BTU
Fuel Type: Electric
Volts: 208 V
Color: Stainless Steel
Brand: TPI
Resources

TPI 3.3 KW Fan Forced Washdown Unit Heater F3F5503T Resources:

TPI 3.3 KW Fan Forced Washdown Unit Heater F3F5503T Specification

Electric Forced Air Heaters - 3.3 KW Fan Forced Washdown Unit Heater - TPI F3F5503T - 11200 BTU

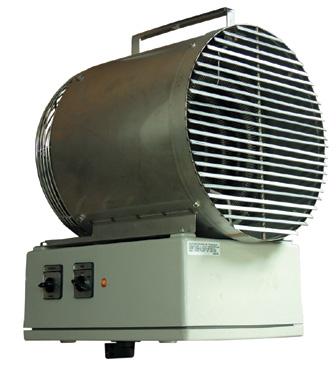

Check out 3.3 KW Fan Forced Washdown Unit Heater with 11200 BTU manufactured by TPI. Model F3F5503T is an electric unit heater constructed for use in areas that require washing or hosing of equipment due to dirty or dusty environments in non-hazardous locations. The totally enclosed water-tight construction made with corrosion-resistant material makes this unit ideal for industrial heating applications. This unit is made with all in-built controls and safety temperature controls wired in a non-metallic Nema 4x control panel with single-point power connections.

TPI 3.3 KW Fan Forced Washdown Unit Heater F3F5503T Specifications
UPC686334713054
KW3.3
BTU11200
VOLTS208
PHASE3
AMPS15.9
Control Voltage24
Temperature Rise26 F
Air Throw20'
CFM400
Weight58 Lbs.

TPI 3.3 KW Fan Forced Washdown Unit Heater F3F5503T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout. Totally enclosed motor.
  • Pilot light (power on indicator)
  • Stainless steel finned tubular element; monel elements available.
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Powder coated epoxy painted stainless steel model available.
  • Minimum mounting height is 7 inches.
  • ABS Type approved
Accessories
Hanging Mount Bracket
TPI
Price $198.55
Line Voltage Thermostat
TPI
Price $104.15
