Washdown Unit Heater
TPI

Washdown Unit Heater

P3P5525T
Price $4,808.65
Please select from the Options below
Disconnect Switch
SKU: P3P5525T
BTU /hr.: 85325 BTU
Fuel Type: Electric
Volts: 480 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Fan Forced Washdown Unit Heater P3P5525T Resources:

TPI Fan Forced Washdown Unit Heater P3P5525T Specifications

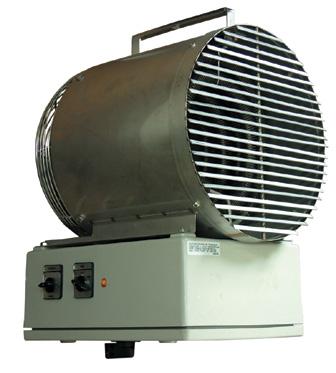

We have 25 KW Fan Forced Washdown Unit Heater with 85325 BTU. TPI P3P5525T is amongst the most-selling unit heaters manufactured by TPI. This ABS Type approved unit is a perfect addition for your place. The totally enclosed water-tight construction made with corrosion-resistant material makes this unit ideal for industrial heating applications. The front grill rotates to ensure direct airflow.

TPI Fan Forced Washdown Unit Heater - P3P5525T Specifications
Wattage25 KW
BTU's85325 BTU
VOLTS480V
Phase3 Ph
AMPS30.1
Control Voltage24
Temp Rise deg F56 F
Air Throw35'
CFM1400
Dimension16"W x 27"D x 28.75 H
Weight92 lbs.
UPC686334713528
ListedETL Listed

Fan Forced Washdown Unit Heater - P3P5525T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout.
  • Totally enclosed motor.
  • Pilot light (power on indicator)
  • Stainless Steel finned tubular element; Monel elements available.
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Powder coated epoxy painted stainless steel model available,
  • Minimum mounting height is 7' for all units
  • ABS Type Approved
