HW
Washdown Unit Heater
TPI

Washdown Unit Heater

H3H5510T
Price $9,197.00 $5,886.08
Please select from the Options below
Disconnect Switch
SKU: H3H5510T
BTU /hr.: 34130 BTU
Fuel Type: Electric
Volts: 240 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Washdown Unit Heater H3H5510T Resources:

TPI Washdown Unit Heater H3H5510T Specification

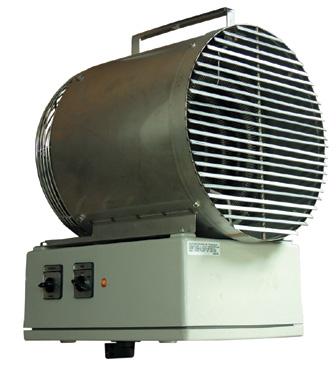

Forced Air HeatersTPI 10 KW, 240V Fan Forced Washdown Unit Heater - H3H5510T

We bring you 10 KW Fan Forced Washdown Unit Heater with 34130 BTU. TPI H3H5510T is made keeping in mind user's preferences, needs and convenience. The totally enclosed water-tight construction made with corrosion-resistant material makes this efficient unit ideal for industrial heating applications. Some of its unique features include capillary style thermostat, totally enclosed motor, pilot light and stainless steel finned tubular and monel elements.

Fan Forced Washdown Unit Heater - TPI H3H5510T Specifications
Wattage10 KW
BTU34130
Voltage240
Phase3
Ampere24.1
Control Voltage24
Temperature Rise45 F
Air Throw28'
CFM700
Dimensions21.75"H x 14"W x 19"H
Weight64 Lbs.
UPC686334713283

Fan Forced Washdown Unit Heater - TPI H3H5510T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout. Totally enclosed motor.
  • Pilot light (power on indicator)
  • Stainless Steel finned tubular element; Monel elements available, consult factory.
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Powder coated epoxy painted stainless steel model available, consult factory
  • Minimum mounting height is 7' for all units
  • ABS Type Approved
