HW

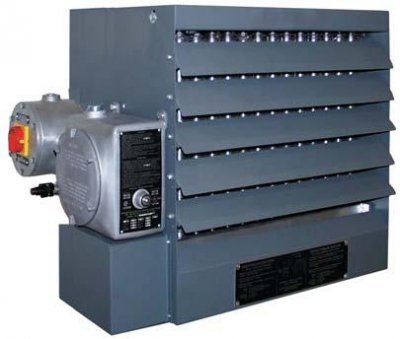

Hazardous Location Fan Forced Unit Heater
TPI

Hazardous Location Fan Forced Unit Heater

HLA2060036020.024
Price $7,691.75
Please select from the Options below
Factory Installed Controls
SKU: HLA2060036020.024
BTU /hr.: 68300 BTU
Fuel Type: Electric
Volts: 600 V
Brand: TPI
Resources

TPI Hazardous Location Fan Forced Unit Heater HLA2060036020.024 Resources:

TPI Hazardous Location Fan Forced Unit Heater HLA2060036020.024 Specifications

We bring you 20 KW Hazardous Location Fan Forced Unit Heater with an amazing output of 68300 BTU. This TPI model HLA2060036020.024 is made keeping in mind user's preferences, needs and convenience. Its 14 ga. steel cabinet with epoxy powder coated finish construction makes this efficient unit durable and protects your investment. Some of its unique features include manual reset capillary type high limit, adjustable louvers.

TPI Hazardous Location Fan Forced Unit Heater - HLA2060036020.024 Specifications
Wattage20 KW
BTU's68300
VOLTS600V
Phase3
AMPS20
Control Voltage24
Temp Rise deg F26.2
Air Throw43'
CFM2450
Recom'd Mounting Ht.13'
Weight225 lbs.
UPC686334734257
ListedETL Listed

Hazardous Location Fan Forced Unit Heater - HLA2060036020.024 Features:

  • Permanently sealed, liquid to air, finned tube heat exchanger core.
  • Ethylene Glycol to water mixture uses a heat transfer fluid in the heater core, providing -49deg F. (-45deg C) freeze damage protection.
  • Manual Reset capillary type high limit provides high temperature regulation and is rated for 6,000 cycles of service.
  • 24v transformer and contactor
  • Pressure relief valve with cintered metal mesh flame arrestor.
  • 14 ga. steel cabinet with epoxy powder coated finish contains heater core, motor, and fan assembly.
  • Narrow gap safety fan guard shields all moving parts.
  • Adjustable louvers allow directional control of air flow.
  • Box lugs furnished for field connections within an approved enclosure.
  • Units can not be operated in room ambients exceeding 104deg F (40deg C).
  • ABS Type Approved
Accessories
Hanging Mounting Kit
TPI
Price $141.35
Line Voltage Thermostat
TPI
Price $330.55
Line Voltage Thermostat
TPI
Price $349.25
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Related ITems
Horizontal / Vertical Fan Forced Heater
TPI
SKU: HF3B5170CA1
BTU /HR.: 179200 - 238900 BTU
Fuel Type: Electric
Volts: 208 - 240 V
Color: Beige
Horizontal Discharge Unit Heater
TPI
SKU: G1GUH10CA1
BTU /HR.: 34100 BTU
Fuel Type: Electric
Volts: 277 V
Color: Ivory

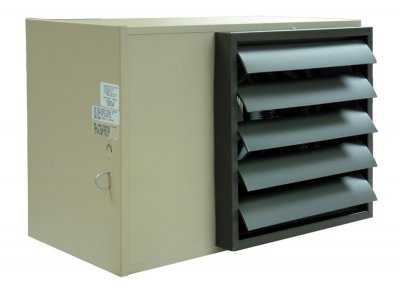

Horizontal Fan Forced Heater
