HW
Hazardous Location Fan Forced Unit Heater
TPI

Hazardous Location Fan Forced Unit Heater

HLA124803603.024
Price $6,193.00
Please select from the Options below
Factory Installed Controls
SKU: HLA124803603.024
BTU /hr.: 10250 BTU
Fuel Type: Electric
Volts: 480 V
Brand: TPI
Resources

TPI Hazardous Location Fan Forced Unit Heater HLA124803603.024 Resources:

TPI Hazardous Location Fan Forced Unit Heater HLA124803603.024 Specifications

3000 W, 10250 BTU Hazardous Location Fan Forced Unit Heater is a perfect combination of performance and value. TPI HLA124803603.024 features pressure relief valve with cintered metal mesh flame arrestor, permanently sealed liquid to air finned tube heat exchanger core and manual reset capillary type high limit that provides high temperature regulation. Ethylene Glycol to water mixture uses a heat transfer fluid in the heater core providing -49 deg. F. (-45 deg. C) freeze damage protection.

Hazardous Location Fan Forced Unit Heater - TPI HLA124803603.024 Specifications
BTU10250
Wattage3000 W
Voltage480 V
Control Volts24 V
Product Weight167 Lbs.
Phase3
Temperature Rise16.5 F
CFM580
Amperage4.3
Air Throw24'
Recommended Mounting Height8'
UPC686334734035

Hazardous Location Fan Forced Unit Heater - TPI HLA124803603.024 Features:

  • Permanently sealed, liquid to air, finned tube heat exchanger core.
  • Ethylene Glycol to water mixture uses a heat transfer fluid in the heater core, providing -49 deg. F. (-45 deg. C) freeze damage protection.
  • Manual Reset capillary type high limit provides high temperature regulation and is rated for 6,000 cycles of service.
  • 24v transformer and contactor
  • Pressure relief valve with cintered metal mesh flame arrestor.
  • 14 ga. steel cabinet with epoxy powder coated finish contains heater core, motor, and fan assembly.
  • Narrow gap safety fan guard shields all moving parts.
  • Adjustable louvers allow directional control of air flow.
  • Box lugs furnished for field connections within an approved enclosure.
  • ABS Type Approved
  • cETLus Listed
Accessories
Mounting Bracket Kit
TPI
Price $336.60
Hanging Mounting Kit
TPI
Price $141.35
Line Voltage Thermostat
TPI
Price $330.55
Line Voltage Thermostat
TPI
Price $349.25
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Related ITems

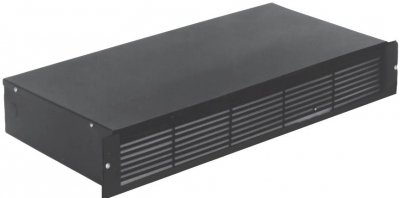

Fan Forced Kickspace Heater
TPI
SKU: TSH20JW
BTU /HR.: 6284 BTU
Fuel Type: Electric
Volts: 120 - 208 - 240 V
Color: White
Hazardous Location Fan Forced Unit Heater
TPI
SKU: HLA2048036025.024
BTU /HR.: 85400 BTU
Fuel Type: Electric
Volts: 480 V
Fan Forced Heater
TPI
SKU: HF5605T
BTU /HR.: 17065 BTU
Fuel Type: Electric
Volts: 208 - 240 V
Color: Beige

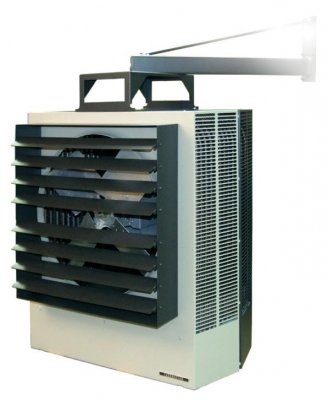

Fan Forced Suspended Unit Heater
