Hazardous Location Fan Forced Unit Heater
TPI

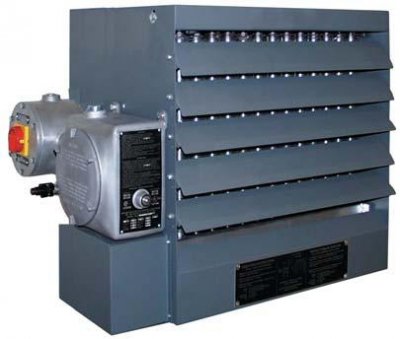

Hazardous Location Fan Forced Unit Heater

HLA1648036010.024
Price $7,097.75
Please select from the Options below
Factory Installed Controls
SKU: HLA1648036010.024
BTU /hr.: 34150 BTU
Fuel Type: Electric
Volts: 480 V
Brand: TPI
Resources

TPI Hazardous Location Fan Forced Unit Heater HLA1648036010.024 Resources:

TPI Hazardous Location Fan Forced Unit Heater HLA1648036010.024 Specifications

We offer you 10000 W, 34150 BTU Hazardous Location Fan Forced Unit Heater by TPI. Model HLA1648036010.024 is made of unmatched quality that you can easily rely on. It features 14 ga. steel cabinet with epoxy powder coated finish containing heater core, motor, and fan assembly, manual reset capillary type high limit providing high temperature regulation and pressure relief valve with cintered metal mesh flame arrestor.

Hazardous Location Fan Forced Unit Heater - TPI HLA1648036010.024 Specifications
BTU34150
Wattage10000 W
Voltage480 V
Control Volts24 V
Product Weight193 Lbs.
Phase3
Temperature Rise21.7
CFM1500
Amperage12.7
Air Throw40'
Recommended Mounting Height10'
UPC686334734189

Hazardous Location Fan Forced Unit Heater - TPI HLA1648036010.024 Features:

  • Permanently sealed, liquid to air, finned tube heat exchanger core.
  • Ethylene Glycol to water mixture uses a heat transfer fluid in the heater core, providing -49 deg. F. (-45 deg. C) freeze damage protection.
  • Manual Reset capillary type high limit provides high temperature regulation and is rated for 6,000 cycles of service.
  • 24v transformer and contactor
  • Pressure relief valve with cintered metal mesh flame arrestor.
  • 14 ga. steel cabinet with epoxy powder coated finish contains heater core, motor, and fan assembly.
  • Narrow gap safety fan guard shields all moving parts.
  • Adjustable louvers allow directional control of air flow.
  • Box lugs furnished for field connections within an approved enclosure.
  • ABS Type Approved
  • cETLus Listed
Accessories
Hanging Mounting Kit
TPI
Price $141.35
Line Voltage Thermostat
TPI
Price $330.55
Line Voltage Thermostat
TPI
Price $349.25
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Related ITems

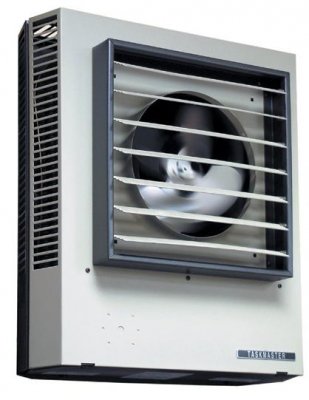

Fan Forced Suspended Unit Heater
TPI
SKU: P3P5190CA1
BTU /HR.: 307100 BTU
Fuel Type: Electric
Volts: 480 V
Color: Ivory
Horizontal Fan Forced Heater
TPI
SKU: P3PUH40CA1
BTU /HR.: 136500 BTU
Fuel Type: Electric
Volts: 480 V
Color: Beige

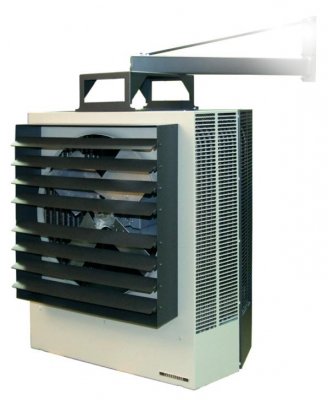

Fan Forced Suspended Unit Heater
