HW
Hazardous Location Fan Forced Unit Heater
TPI

Hazardous Location Fan Forced Unit Heater

HLA1624036010.024
Price $7,097.75
Please select from the Options below
Factory Installed Controls
SKU: HLA1624036010.024
BTU /hr.: 34150 BTU
Fuel Type: Electric
Volts: 240 V
Brand: TPI
Resources

TPI Hazardous Location Fan Forced Unit Heater HLA1624036010.024 Resources:

TPI Hazardous Location Fan Forced Unit Heater HLA1624036010.024 Specifications

Hazardous Location Fan Forced Unit Heater, TPI HLA1624036010.024, comes with 10000 Watts of power and 34150 BTU. This amazing unit has 14 ga. steel cabinet with epoxy powder coated finish containing heater core, motor, and fan assembly, 24v transformer and contactor and pressure relief valve with cintered metal mesh flame arrestor.

Hazardous Location Fan Forced Unit Heater - TPI HLA1624036010.024 Specifications
BTU34150
Wattage10000 W
Voltage240 V
Control Volts24 V
Product Weight193 Lbs.
Phase3
Temperature Rise21.7
CFM1500
Amperage25.5
Air Throw40'
Recommended Mounting Height10'
UPC686334734172

Hazardous Location Fan Forced Unit Heater - TPI HLA1624036010.024 Features:

  • Permanently sealed, liquid to air, finned tube heat exchanger core.
  • Ethylene Glycol to water mixture uses a heat transfer fluid in the heater core, providing -49 deg. F. (-45 deg. C) freeze damage protection.
  • Manual Reset capillary type high limit provides high temperature regulation and is rated for 6,000 cycles of service.
  • 24v transformer and contactor
  • Pressure relief valve with cintered metal mesh flame arrestor.
  • 14 ga. steel cabinet with epoxy powder coated finish contains heater core, motor, and fan assembly.
  • Narrow gap safety fan guard shields all moving parts.
  • Adjustable louvers allow directional control of air flow.
  • Box lugs furnished for field connections within an approved enclosure.
  • ABS Type Approved
  • cETLus Listed
Accessories
Hanging Mounting Kit
TPI
Price $141.35
Line Voltage Thermostat
TPI
Price $330.55
Line Voltage Thermostat
TPI
Price $349.25
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Related ITems

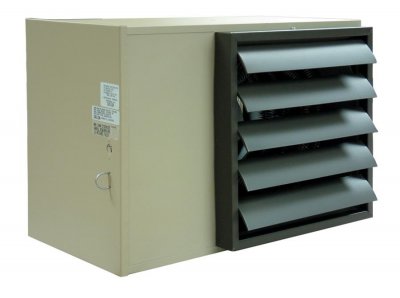

Horizontal Fan Forced Heater
TPI
SKU: H2HUH05C03
BTU /HR.: 17100 BTU
Fuel Type: Electric
Volts: 240 V
Color: Beige
Horizontal Fan Forced Heater
TPI
SKU: P3PUH20CA1
BTU /HR.: 68300 BTU
Fuel Type: Electric
Volts: 480 V
Color: Beige

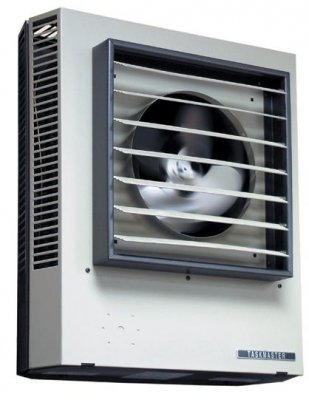

Horizontal / Vertical Fan Forced Heater
TPI
SKU: HF1B5103N
BTU /HR.: 8500 - 11200 BTU
Fuel Type: Electric
Volts: 208 - 240 V
Color: Ivory

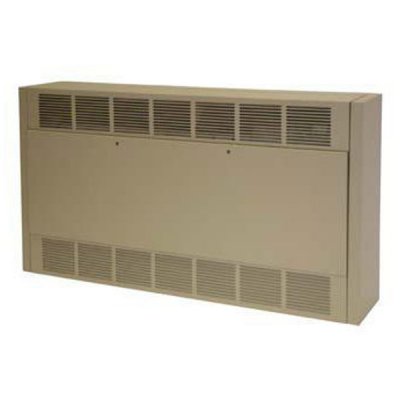

Fan Forced Cabinet Unit Heater
TPI
SKU: 6346D104833B30D0F
BTU /HR.: 34130 BTU
Fuel Type: Electric
Volts: 480 V
Color: Beige

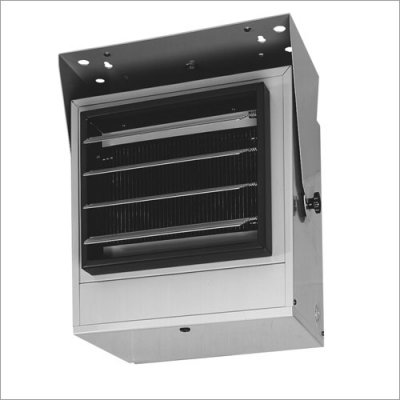

Fan Forced Heater
