Hazardous Location Wall Convector
TPI

Hazardous Location Wall Convector

FEP08271RA
Price $1,027.95
Please select from the Options below
Factory Installed Controls
SKU: FEP08271RA
BTU /hr.: 2730 BTU
Fuel Type: Electric
Volts: 277 V
Color: Gray
Brand: TPI
Resources

Hazardous Location Wall Convector TPI FEP08271RA Resources:

Hazardous Location Wall Convector TPI FEP08271RA Specification

Electric Convection Heaters - 34" Single Phase Hazardous Location Wall Convector - TPI FEP08271RA - 2730 BTU

Try this TPI FEP08271RA, 34" Single Phase Hazardous Location Wall Convector that yields high output of 2730 Btu. This high feature unit is ideal for outdoor applications. The heater has a power consumption of 800 watts, 277 volts and 2.9 amps. The stainless steel cartridge element inserted into aluminum finned copper sheath. The heater has heavy duty 16 ga. steel with gray epoxy textured powder coated finish. This unit is NEMA 4 rated.

Hazardous Location Wall Convector TPI FEP08271RA Specifications
UPC686334445368
Watts800
Btu's2730
Volts277
Amps2.9
Cabinet Length34"
Weight50 Lbs.

Hazardous Location Wall Convector TPI FEP08271RA Features:

  • Cabinet size 18" high, 9" wide
  • Bottom In - Front Out air flow
  • Wall mounting bracket supplied
  • Heavy duty 16 ga. steel with gray epoxy textured powder coated finish
  • 9" minimum clearance from bottom F heater to floor required
  • Stainless steel cartridge element inserted into aluminum finned copper sheath
  • Units can not be operated in room
  • Standard unit (without EPET thermostat or control section) is NEMA 4 rated ambients exceeding 104 F (40 C)
  • Units that exceed 22 Amps may not be controlled by line voltage thermostats
Accessories
Line Voltage Thermostat
TPI
Price $330.55
Line Voltage Thermostat
TPI
Price $349.25
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Related ITems

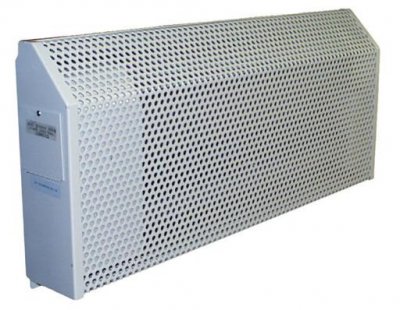

Institutional Wall Convector
