Hazardous Location Wall Convector
TPI

Hazardous Location Wall Convector

FEP76571RA
Price $4,644.00 $2,972.16
Please select from the Options below
Factory Installed Controls
SKU: FEP76571RA
BTU /hr.: 25938 BTU
Fuel Type: Electric
Volts: 600 V
Color: Gray
Brand: TPI
Resources

Hazardous Location Wall Convector TPI FEP76571RA Resources:

Hazardous Location Wall Convector TPI FEP76571RA Specification

Electric Convection Heaters - 7600W Single Phase Hazardous Location Wall Convector - TPI FEP76571RA - 25938 BTU

Chase this high efficiency Single Phase Hazardous Location Wall Convector made by TPI. Model FEP76571RA is electric convection heater that gives amazing 25938 BTU output by consuming just 7600 wattage. This standard unit (without EPET thermostat or control section) is NEMA 4 rated. Available with stainless steel cartridge element inserted into aluminum finned copper sheath.

Hazardous Location Wall Convector TPI FEP76571RA Specifications
UPC686334445320
Watts7600
Btu's25938
Volts600
Amps12.7
Cabinet Length58"
Weight85 Lbs.

Hazardous Location Wall Convector TPI FEP76571RA Features:

  • Cabinet size 18" high, 9" wide
  • Bottom In - Front Out air flow
  • Wall mounting bracket supplied
  • Heavy duty 16 ga. steel with gray epoxy textured powder coated finish
  • 9" minimum clearance from bottom F heater to floor required
  • Stainless steel cartridge element inserted into aluminum finned copper sheath
  • Units can not be operated in room
  • Standard unit (without EPET thermostat or control section) is NEMA 4 rated ambients exceeding 104 F (40 C)
  • Units that exceed 22 Amps may not be controlled by line voltage thermostats
Accessories
Line Voltage Thermostat
TPI
Price $794.00 $508.16
Line Voltage Thermostat
TPI
Price $838.00 $536.32
Line Voltage Thermostat
TPI
Price $579.00 $370.56
Line Voltage Thermostat
TPI
Price $579.00 $370.56
Line Voltage Thermostat
TPI
Price $579.00 $370.56
Line Voltage Thermostat
TPI
Price $579.00 $370.56
Related ITems
Hazardous Location Wall Convector
TPI
SKU: FEP38203RA
BTU /HR.: 12969 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray

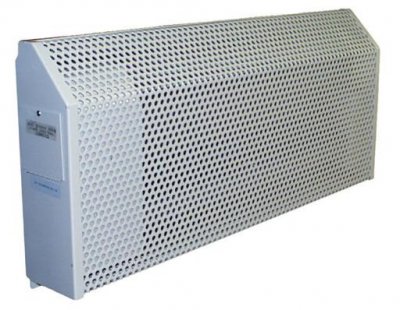

Institutional Wall Convector
