Horizontal Fan Forced Heater
TPI

Horizontal Fan Forced Heater

P3PUH05CA1
Price $666.60
Please select from the Options below
Factory Installed Controls
SKU: P3PUH05CA1
BTU /hr.: 17100 BTU
Fuel Type: Electric
Volts: 480 V
Color: Beige
Brand: TPI
Resources

TPI Fan Forced Horizontal Discharge Unit Heater P3PUH05CA1 Resources:

TPI Fan Forced Horizontal Discharge Unit Heater P3PUH05CA1 Specifications

We stock Fan Forced Horizontal Discharge Unit Heater, P3PUH05CA1, to assure even and clean heating. This unit is a must buy for all heater enthusiastic. Model is suitable for applications up to 13,000 feet. Its totally enclosed, single phase, permanently lubricated, thermally protected motor makes it the most efficient unit.

TPI Fan Forced Horizontal Discharge Unit Heater - P3PUH05CA1 Specifications
Wattage5 KW
BTU's17100 BTU
VOLTS480V
Phase3 Ph
AMPS6.1
Control Voltage24
Temp Rise deg F40 F
Air Throw26'
CFM400
Recom'd Mounting Ht.9'
Dimension20"W x 11"D x 13"H
Weight36 lbs.
UPC686334644884
ListedETL Listed

Fan Forced Horizontal Discharge Unit Heater - P3PUH05CA1 Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation & maintenance

HEATING ELEMENT:

  • Circular copper clad steel element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade

OVERHEAT PROTECTION:

  • Equipped with automatic reset type limit controls to de-energize the

FAN and MOTOR:

  • Heater should an over-temperature situation occur.
  • Totally enclosed, single phase, permanently lubricated, thermally protected motors
  • Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard.

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow and the louver assembly can be repositioned in the field from down air flow to right or left directional air flow.

TEMPERATURE CONTROLS:

  • 20 KW through 48 KW units and all 480V have built in 24 volt transformer for low voltage remote thermostat application
  • 25 KW through 48 KW models available in 2-stage on special order

INSTALLATION:

  • UH Series may be mounted at a maximum of 45 degrees off of horizontal
  • On all models up to 15 KW, 1/4" threaded rod may be used for mounting; on all models 20 KW and above 5/16" threaded rod may be used
  • Optional wall / ceiling mounting brackets available for all units
  • Suitable for applications up to 13,000 feet

FACTORY INSTALLED OPTIONS:

  • 24 volt transformer on 3 KW to 15KW units to convert from line voltage to low voltage remote thermostat operation (non CA1 models only)
  • Summer fan switch to operate the fan only.
  • Fan Delay Switch to purge all residual heat from the unit after the heating element has cycled off
  • Powder coated Epoxy finish is available -
  • Disconnect switch
Accessories
Thermostat Kit
TPI
Price $52.25
Related ITems
Wall Mounting Bracket Kit
TPI
SKU: HLWM37
Fuel Type: Electric
Hanging Mount Bracket
TPI
SKU: H5520
Fuel Type: Electric
Fan Forced Unit Heater
TPI
SKU: F2FUH05C03
BTU /HR.: 17100 BTU
Fuel Type: Electric
Volts: 208 V
Color: Beige

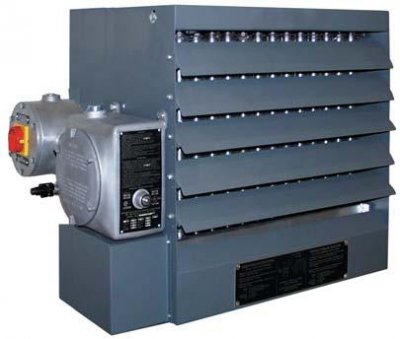

Hazardous Location Fan Forced Unit Heater
