HW

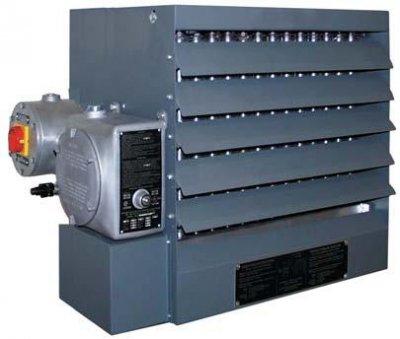

Hazardous Location Fan Forced Unit Heater
TPI

Hazardous Location Fan Forced Unit Heater

HLA2048036015.024
Price $7,405.20
Please select from the Options below
Factory Installed Controls
SKU: HLA2048036015.024
BTU /hr.: 51200 BTU
Fuel Type: Electric
Volts: 480 V
Brand: TPI
Resources

TPI Hazardous Location Fan Forced Unit Heater HLA2048036015.024 Resources:

TPI Hazardous Location Fan Forced Unit Heater HLA2048036015.024 Specifications

We bring you 15000 W, 51200 BTU Hazardous Location Fan Forced Unit Heater by TPI. Model HLA2048036015.024 consists of 14 ga. steel cabinet with epoxy powder coated finish containing heater core, motor and fan assembly, manual reset capillary type high limit providing high temperature regulation and box lugs furnished for field connections within an approved enclosure.

Hazardous Location Fan Forced Unit Heater - TPI HLA2048036015.024 Specifications
BTU51200
Wattage15000 W
Voltage480 V
Control Volts24 V
Product Weight193 Lbs.
Phase3
Temperature Rise19.2
CFM2450
Amperage19
Air Throw43'
Recommended Mounting Height13'
UPC686334734226

Hazardous Location Fan Forced Unit Heater - TPI HLA2048036015.024 Features:

  • Permanently sealed, liquid to air, finned tube heat exchanger core.
  • Ethylene Glycol to water mixture uses a heat transfer fluid in the heater core, providing -49 deg. F. (-45 deg. C) freeze damage protection.
  • Manual Reset capillary type high limit provides high temperature regulation and is rated for 6,000 cycles of service.
  • 24v transformer and contactor
  • Pressure relief valve with cintered metal mesh flame arrestor.
  • 14 ga. steel cabinet with epoxy powder coated finish contains heater core, motor, and fan assembly.
  • Narrow gap safety fan guard shields all moving parts.
  • Adjustable louvers allow directional control of air flow.
  • Box lugs furnished for field connections within an approved enclosure.
  • ABS Type Approved
  • cETLus Listed
Accessories
Mounting Bracket Kit
TPI
Price $336.60
Hanging Mounting Kit
TPI
Price $141.35
Line Voltage Thermostat
TPI
Price $330.55
Line Voltage Thermostat
TPI
Price $349.25
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Related ITems
Hazardous Location Fan Forced Unit Heater
TPI
SKU: HLA122401605.024
BTU /HR.: 17100 BTU
Fuel Type: Electric
Volts: 240 V

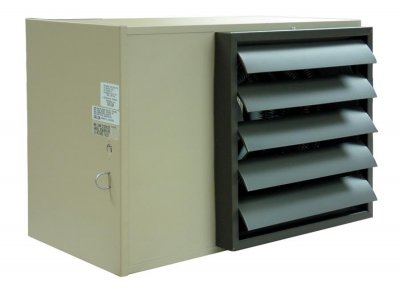

Horizontal Fan Forced Heater
