Portable Electric Infrared Heat Panel
TPI

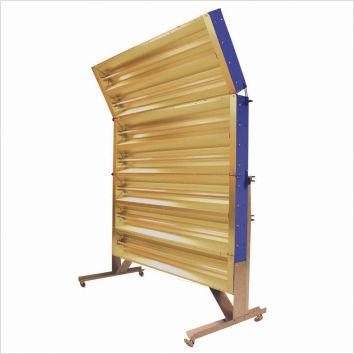

Portable Electric Infrared Heat Panel

HP11QT
Price $3,837.90
SKU: HP11QT
Fuel Type: Electric
Volts: 240 V
Color: Gold
Brand: TPI

Introducing 11200 W portable electric infrared heat panel manufactured by TPI. Model HP11QT has gold anodized aluminum reflectors and end caps allow 10% faster cure time than polished aluminum reflectors. The built-on heating elements are rated for an average life expectancy of 5,000 hours and elements achieve full temperature in less than 1 to 2 minutes.

TPI Portable Electric Infrared Heat Panel HP11QT Specifications
Wattage11200 W
Voltage240 V
Amps46.7
Heat SourceSeven 1600 W Elements
Cable Type6-3 SO
Width66-5/8"W x 89-1/2"H
Heating Area61"W x 77"H
Weight225 Lbs.
UPC686334884143

TPI Portable Electric Infrared Heat Panel HP11QT Features:

  • Portable Panels are built to withstand rigors of industrial and heavy-commercial applications, such as auto collision repair shops.
  • 20 gauge steel frame, base, and housing construction.
  • Wide steel base with heavy-duty 3? steel casters for high stability and ease of mobility.
  • Gold anodized aluminum reflectors and end caps allow 10% faster cure time than polished aluminum reflectors, especially in paint and dust-laden atmospheres.
  • Medium Wave Quartz Tube Electric Infrared Heating Elements HP-11-QT Model -- (7) 1600-watt elements
  • Elements achieve full temperature in less than 1 to 2 minutes.
  • Heating elements are rated for an average life expectancy of 5,000 hours.
  • 20' of Type SO cable standard with each unit.
  • Fused disconnect switches installed on the back of each unit.
  • All internal wiring consists of high-temp 200?C rated wire.
  • It provides coverage to over 5' in width, and up to 6-1/2' high, to reach tops of automobiles, larger surfaces, etc.Units are easily positioned with adjustable hinges allowing the user to direct heat precisely to the target area.
