HW
Portable Electric Infrared Heat Panel
TPI

Portable Electric Infrared Heat Panel

HP6QT
Price $5,004.00 $3,202.56
SKU: HP6QT
Fuel Type: Electric
Volts: 240 V
Brand: TPI

Presenting TPI portable electric infrared heat panel, HP6QT, provides 6400 W of output at 240 V AC power supply. Elements achieve full temperature in less than 1 to 2 minutes with average life expectancy of 5,000 hours. Its 20 gauge steel frame, base, and housing construction with heavy-duty 3? steel casters for high stability and ease of mobility. Gold anodized aluminum reflectors and end caps allow 10% faster cure time than polished aluminum reflectors.

TPI Portable Electric Infrared Heat Panel HP6QT Specifications
Wattage6400 W
Voltage240 V
Amps26.7
Heat SourceFour 1600 W Elements
Cable Type12-3 SO
Width66-5/8"W x 56-1/2"H
Heating Area61"W x 44"H
Weight141 Lbs.
UPC686334884136

TPI Portable Electric Infrared Heat Panel HP6QT Features:

  • Portable Panels are built to withstand rigors of industrial and heavy-commercial applications, such as auto collision repair shops.
  • 20 gauge steel frame, base, and housing construction.
  • Wide steel base with heavy-duty 3? steel casters for high stability and ease of mobility.
  • Gold anodized aluminum reflectors and end caps allow 10% faster cure time than polished aluminum reflectors, especially in paint and dust-laden atmospheres.
  • Medium Wave Quartz Tube Electric Infrared Heating Elements HP-6-QT Model -- (4) 1600-watt elements
  • Elements achieve full temperature in less than 1 to 2 minutes.
  • Heating elements are rated for an average life expectancy of 5,000 hours.
  • 20' of Type SO cable standard with each unit.
  • Fused disconnect switches installed on the back of each unit.
  • All internal wiring consists of high-temp 200?C rated wire.
  • Model # HP-11-QT provides coverage to over 5' in width, and up to 6-1/2' high, to reach tops of automobiles, larger surfaces, etc.Units are easily positioned with adjustable hinges allowing the user to direct heat precisely to the target area.
Accessories
Related ITems
Mul-T-Mount Infrared Heater
TPI
SKU: 22330THSS480V
BTU /HR.: 16382 BTU
Fuel Type: Electric
Volts: 480 V
Color: Stainless Steel

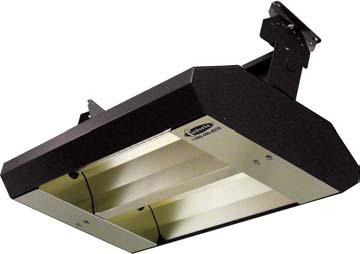

Stainless Steel Mul-T-Mount Infrared Heater
