HW
Mul-T-Mount Infrared Heater
Fostoria

Mul-T-Mount Infrared Heater

22290TH480V
Price $1,033.00 $661.12
SKU: 22290TH480V
BTU /hr.: 10922 btu
Fuel Type: Electric
Volts: 480V
Color: Brown
Brand: Fostoria

Commercial / Warehouse Heaters - Mul-T-Mount Quartz Electric Infrared Heater - Fostoria 222-90-TH-480V - 10,922 BTU - 480V

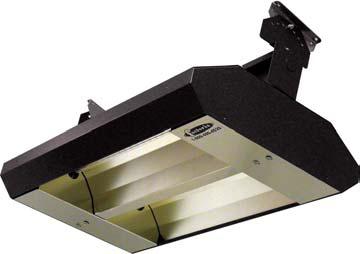

Introducing Mul-T-Mount 2 Lamp Electric Infrared Heater with 2 clear quartz lamps and 10,922 BTU. Fostoria 222-90-TH-480V models are best used in patio areas, bus shelters, airport terminals, workstations, lobby entrances, etc. The infrared heater is available in two different housing materials: 20-gage Stainless Steel or Galvannealed Steel painted with a high temperature powder coated brown finish. The infrared heater provides 90 degree symmetrical reflector patterns. The unit can be tilted 0 to 45 degree horizontally with the help of a built-in surface mounting bracket. UL / C-UL listed for suspended, totally exposed outdoor, and indoor comfort heating applications, it has a gold anodized one-piece reflector that offers various distribution of infrared heat and operates on single-phase. Infrared heating systems heat people and objects to a desired temperature level and creates a safe, clean atmosphere.

Mul-T-Mount Electric Infrared Heater - Specifications
Voltage480V
Type Indoor / Outdoor
BTU's10,922
KW3.2
Phase1
ColorBrown
Reflector Patterns90 degree symmetrical
No. of Lamps2 Clear Quartz
Dimension 24" L x 15" W x 10-7/8" H x 23-1/2" Mtg. Ctr.
Weight 20 lbs.
Mounting Suspended, Recessed and Totally Exposed Outdoors
Agency Compliance UL, CUL
Repl. Heating Element63016489

Mul-T-Mount Electric Infrared Heater Features :

  • Symmetrical reflector pattern
  • 0 to 45° tilt
  • UL / C-UL listed
  • Includes 2 clear quartz lamps
  • 10,922 BTU
  • Available in 480 V
  • Housing materials: Brown coated Stainless Steel
  • Operates on single-phase operation
  • Zone control flexibility
  • Highly engineered and proven
Accessories
Related ITems

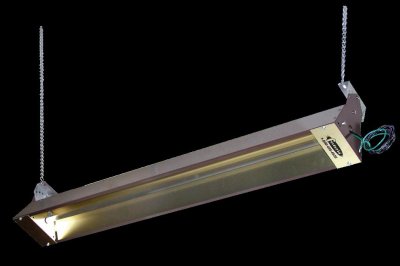

Quartz Infrared Heater
TPI
SKU: OCH-46-120V-SS
BTU /HR.: 5120 BTU
Fuel Type: Electric
Volts: 120 V
Color: Stainless Steel
Quartz Infrared Heater
TPI
SKU: OCH-46-120V
BTU /HR.: 5120 BTU
Fuel Type: Electric
Volts: 120 V
Color: Brown
Quartz Infrared Heater
TPI
SKU: OCH-57-480V-SS
BTU /HR.: 7679 BTU
Fuel Type: Electric
Volts: 480 V
Color: Stainless Steel
Quartz Infrared Heater
TPI
SKU: OCH-46-208V
BTU /HR.: 6826 BTU
Fuel Type: Electric
Volts: 208 V
Color: Brown

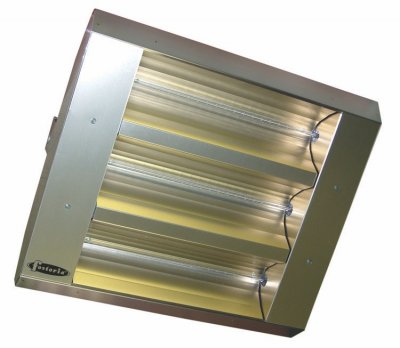

Mul-T-Mount Infrared Heater
