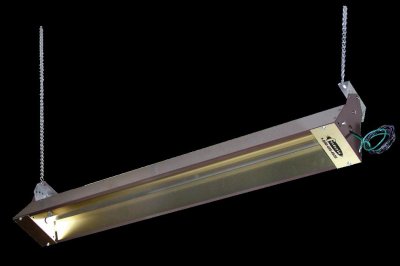

Quartz Infrared Heater
TPI

Quartz Infrared Heater

OCH-46-120V-SS
Price $216.70
SKU: OCH-46-120V-SS
BTU /hr.: 5120 BTU
Fuel Type: Electric
Volts: 120 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Electric Infrared Heater OCH-46-120V-SS Resources:

TPI Electric Infrared Heater OCH-46-120V-SS User Manual

We have with us 120 V Outdoor / Indoor Rated Quartz Electric Infrared Heater, model OCH-46-120V-SS, by TPI. This remarkable unit comes in stainless steel finish. This ETL listed heater is designed for suspended, totally exposed (outdoor) and indoor spot heating applications. It includes an electrical enclosure assembled to the end of the heater housing and (2) 6" long lead wires for direct field connection. Three different mounting options are available on this unit: chain mount (supplied), wall mount and ceiling mount.

TPI Electric Infrared Heater OCH-46-120V-SS Specifications
BTUs5120 BTU
Wattage1500 W
Color / FinishStainless Steel
Product Dimensions44.4" L x 5.4" W x 6.5" H
Voltage120 V
Amperage12.5 A
Product Weight10 Lbs.
Cordset IncludedNo
UPC686334480529
Recommended Mounting Height7' - 9'
Mounting Clearances3" from ceiling
12" from vertical surface
72" from face of heater to combustible surface
36" from another heater
Quartz Tube Replacement Element 671-3784
CertificationETL Listed

TPI Electric Infrared Heater OCH-46-120V-SS Features:

  • Includes frosted quartz tube heating element. Frosted quartz envelope with a nickel-chrome coiled filament, porcelain end caps, and threaded-screw (stud) terminations. Fast heat-up and cool-down performance.
  • Listed for suspended, totally exposed (outdoor) and indoor spot heating applications
  • Finish: Corrosion resistant stainless steel 24-gauge housing. Housing is ETL listed for indoor applications only. Horizontal mounting only.
  • 60 symmetric heat pattern
  • .040 gold anodized aluminum reflector and end caps for superior reflectiveness.
  • Includes an electrical enclosure assembled to the end of the heater housing and (2) 6" long lead wires for direct field connection.
  • Two 2 ft. long mounting chains and four S-hooks included
  • It can be surfaced mounted using the supplied mounting brackets which allow up to a 45 horizontal tilt adjustment.
  • Three different mounting options are available: Chain Mount (supplied), Wall Mount & Ceiling Mount
  • Controls: This heater is not manufactured with any control device on the unit. All controls are accessories and should be specified as such.
  • Accessories: Adjustable mounting brackets (stainless steel), vertical mounting brackets (stainless steel), wire guards, thermostats, SCR controllers, and power contactor panels.
Accessories
Two Wall Mount Brackets
TPI
Price $138.60
Related ITems

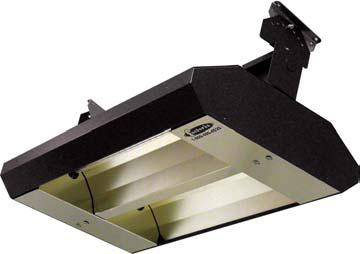

Mul-T-Mount Infrared Heater
TPI
SKU: 34390THSS208V
BTU /HR.: 25298 BTU
Fuel Type: Electric
Volts: 208 V
Color: Stainless Steel
Mul-T-Mount Infrared Heater
Fostoria
SKU: 342A60TH480V
BTU /HR.: 17065 btu
Fuel Type: Electric
Volts: 480 V
Color: Brown

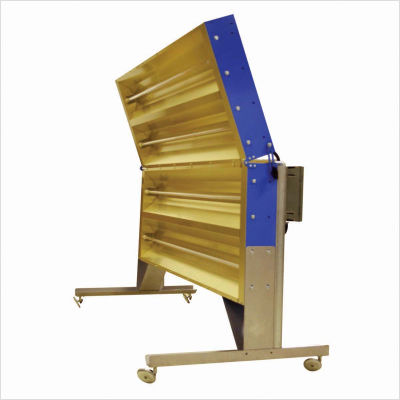

Portable Electric Infrared Heat Panel
