HW
Washdown Unit Heater
TPI

Washdown Unit Heater

F3F5525T
Price $4,808.65
Please select from the Options below
Disconnect Switch
SKU: F3F5525T
BTU /hr.: 85325 BTU
Fuel Type: Electric
Volts: 208 V
Color: Stainless Steel
Brand: TPI
Resources

TPI 25 KW Fan Forced Washdown Unit Heater F3F5525T Resources:

TPI 25 KW Fan Forced Washdown Unit Heater F3F5525T Specification

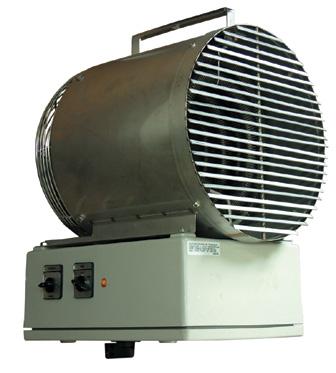

Electric Forced Air Heaters - 25 KW Fan Forced Washdown Unit Heater - TPI F3F5525T - 85325 BTU

We have 25 KW Fan Forced Washdown Unit Heater with 85325 BTU. TPI F3F5525T is amongst the most-selling unit heaters manufactured by TPI. This ABS Type approved unit is a perfect addition for your place. The totally enclosed water-tight construction made with corrosion-resistant material makes this unit ideal for industrial heating applications. The front grill rotates to ensure direct airflow.

TPI 25 KW Fan Forced Washdown Unit Heater F3F5525T Specifications
UPC686334713504
KW25
BTU85325
VOLTS208
PHASE3
AMPS69.5
Control Voltage24
Temperature Rise56 F
Air Throw35'
CFM1400
Weight92 Lbs.

TPI 25 KW Fan Forced Washdown Unit Heater F3F5525T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout. Totally enclosed motor.
  • Pilot light (power on indicator)
  • Stainless steel finned tubular element; monel elements available.
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Powder coated epoxy painted stainless steel model available.
  • Minimum mounting height is 7 inches.
  • ABS Type approved
