HW
Washdown Unit Heater
TPI

Washdown Unit Heater

G1G5507T
Price $3,034.35
Please select from the Options below
Disconnect Switch
SKU: G1G5507T
BTU /hr.: 25600 BTU
Fuel Type: Electric
Volts: 277 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Downflow Unit Heater G1G5507T Resources:

TPI Downflow Unit Heater G1G5507T Specification

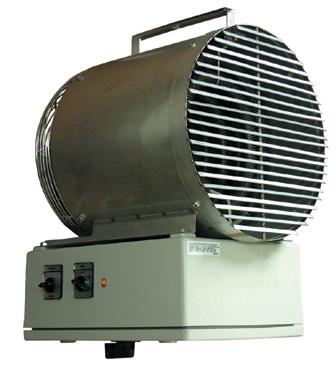

Electric Forced Air Heaters - 7500 W, 25600 BTU 12" Fan Forced Washdown Unit Heater - TPI G1G5507T

Offering this best quality Electric Forced Air Heaters made by TPI. Model G1G5507T is 7500 W, 12" Fan Forced Washdown Unit Heater that gives an 25600 BTU output. Its totally enclosed water-tight construction made with corrosion-resistant material make the unit ideal for industrial heating applications. The model features with heavy-duty 304, 16 ga. stainless steel shroud. This powder coated epoxy painted stainless steel model available with automatic reset thermal cutout and is ABS Type Approved.

Fan Forced Washdown Unit Heater - 25600 BTU - TPI G1G5507T Specifications
BTU25600
KW7.5 KW
TEMP RISE60 F
CFM400
Amps.27.1
Phase1 PH
Air throw20'
Voltage 277V
Control Volts24
Product Dimension12"D x 18"W x 19.75"L
Weight58 Lbs.
UPC686334713221

Fan Forced Washdown Unit Heater - 25600 BTU - TPI G1G5507T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout.
  • Totally enclosed motor.
  • Pilot light (power on indicator)
  • Stainless Steel finned tubular element; Monel elements available.
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Powder coated epoxy painted stainless steel model available
  • Minimum mounting height is 7' for all units
  • ABS Type Approved
  • ETL listed
