HW

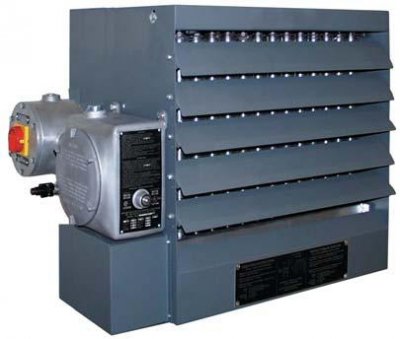

Hazardous Location Fan Forced Unit Heater
TPI

Hazardous Location Fan Forced Unit Heater

HLA2048036020.024
Price $7,691.75
Please select from the Options below
Factory Installed Controls
SKU: HLA2048036020.024
BTU /hr.: 68300 BTU
Fuel Type: Electric
Volts: 480 V
Brand: TPI
Resources

TPI Hazardous Location Fan Forced Unit Heater HLA2048036020.024 Resources:

TPI Hazardous Location Fan Forced Unit Heater HLA2048036020.024 Specifications

Offering this safe and easy to handle Hazardous Location Fan Forced Unit Heater manufactured by TPI. Model HLA2048036020.024, has manual reset capillary type high limit that provides high temperature regulation. This unit is constructed using 14 ga. steel cabinet with epoxy powder coated finish, that ensure high degree of durability. It completes with its adjustable louvers allow directional control of air flow.

TPI Hazardous Location Fan Forced Unit Heater - HLA2048036020.024 Specifications
Wattage20 KW
BTU's68300
VOLTS480V
Phase3
AMPS25.1
Control Voltage24
Temp Rise deg F26.2
Air Throw43'
CFM2450
Recom'd Mounting Ht.13'
Weight225 lbs.
UPC686334734240
ListedETL Listed

Hazardous Location Fan Forced Unit Heater - HLA2048036020.024 Features:

  • Permanently sealed, liquid to air, finned tube heat exchanger core.
  • Ethylene Glycol to water mixture uses a heat transfer fluid in the heater core, providing -49deg F. (-45deg C) freeze damage protection.
  • Manual Reset capillary type high limit provides high temperature regulation and is rated for 6,000 cycles of service.
  • 24v transformer and contactor
  • Pressure relief valve with cintered metal mesh flame arrestor.
  • 14 ga. steel cabinet with epoxy powder coated finish contains heater core, motor, and fan assembly.
  • Narrow gap safety fan guard shields all moving parts.
  • Adjustable louvers allow directional control of air flow.
  • Box lugs furnished for field connections within an approved enclosure.
  • Units can not be operated in room ambients exceeding 104deg F (40deg C).
  • ABS Type Approved
