Hazardous Location Fan Forced Unit Heater
TPI

Hazardous Location Fan Forced Unit Heater

HLA2024036015.024
Price $7,405.20
Please select from the Options below
Factory Installed Controls
SKU: HLA2024036015.024
BTU /hr.: 51200 BTU
Fuel Type: Electric
Volts: 240 V
Brand: TPI
Resources

TPI Hazardous Location Fan Forced Unit Heater HLA2024036015.024 Resources:

TPI Hazardous Location Fan Forced Unit Heater HLA2024036015.024 Specifications

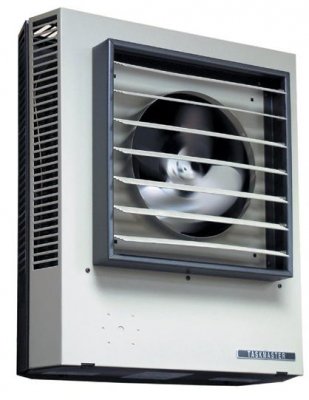

15000 W, 51200 BTU Hazardous Location Fan Forced Unit Heater is manufactured by TPI. Model HLA2024036015.024 is designed using the best quality materials and components to provide the user with trouble-free service at lower heating costs. It features narrow gap safety fan guard that shields all moving parts, 24v transformer and contactor and pressure relief valve with cintered metal mesh flame arrestor.

Hazardous Location Fan Forced Unit Heater - TPI HLA2024036015.024 Specifications
BTU51200
Wattage15000 W
Voltage240 V
Control Volts24 V
Product Weight193 Lbs.
Phase3
Temperature Rise19.2
CFM2450
Amperage38.1
Air Throw43'
Recommended Mounting Height13'
UPC686334734219

Hazardous Location Fan Forced Unit Heater - TPI HLA2024036015.024 Features:

  • Permanently sealed, liquid to air, finned tube heat exchanger core.
  • Ethylene Glycol to water mixture uses a heat transfer fluid in the heater core, providing -49 deg. F. (-45 deg. C) freeze damage protection.
  • Manual Reset capillary type high limit provides high temperature regulation and is rated for 6,000 cycles of service.
  • 24v transformer and contactor
  • Pressure relief valve with cintered metal mesh flame arrestor.
  • 14 ga. steel cabinet with epoxy powder coated finish contains heater core, motor, and fan assembly.
  • Narrow gap safety fan guard shields all moving parts.
  • Adjustable louvers allow directional control of air flow.
  • Box lugs furnished for field connections within an approved enclosure.
  • ABS Type Approved
  • cETLus Listed
