HW
Hazardous Location Fan Forced Unit Heater
TPI

Hazardous Location Fan Forced Unit Heater

HLA1620836010.024
Price $17,031.00 $10,899.84
Please select from the Options below
Factory Installed Controls
SKU: HLA1620836010.024
BTU /hr.: 34150 BTU
Fuel Type: Electric
Volts: 208 V
Brand: TPI
Resources

TPI Hazardous Location Fan Forced Unit Heater HLA1620836010.024 Resources:

TPI Hazardous Location Fan Forced Unit Heater HLA1620836010.024 Specifications

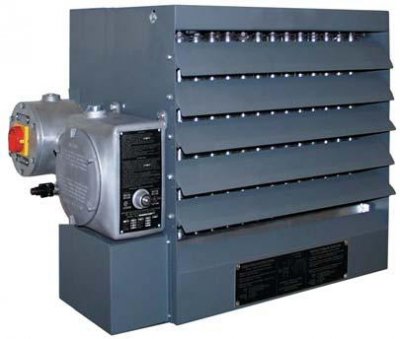

Introducing 10000 W, 34150 BTU Hazardous Location Fan Forced Unit Heater manufactured by TPI. Model HLA1620836010.024 is an investment worth making for your place. It includes 14 ga. steel cabinet with epoxy powder coated finish containing heater core, motor and fan assembly, adjustable louvers allowing directional control of air flow and box lugs furnished for field connections within an approved enclosure.

Hazardous Location Fan Forced Unit Heater - TPI HLA1620836010.024 Specifications
BTU34150
Wattage10000 W
Voltage208 V
Control Volts24 V
Product Weight193 Lbs.
Phase3
Temperature Rise21.7
CFM1500
Amperage29.3
Air Throw40'
Recommended Mounting Height10'
UPC686334734158

Hazardous Location Fan Forced Unit Heater - TPI HLA1620836010.024 Features:

  • Permanently sealed, liquid to air, finned tube heat exchanger core.
  • Ethylene Glycol to water mixture uses a heat transfer fluid in the heater core, providing -49 deg. F. (-45 deg. C) freeze damage protection.
  • Manual Reset capillary type high limit provides high temperature regulation and is rated for 6,000 cycles of service.
  • 24v transformer and contactor
  • Pressure relief valve with cintered metal mesh flame arrestor.
  • 14 ga. steel cabinet with epoxy powder coated finish contains heater core, motor, and fan assembly.
  • Narrow gap safety fan guard shields all moving parts.
  • Adjustable louvers allow directional control of air flow.
  • Box lugs furnished for field connections within an approved enclosure.
  • ABS Type Approved
  • cETLus Listed
