HW
Hazardous Location Wall Convector
TPI

Hazardous Location Wall Convector

FEP36201RA
Price $1,568.60
Please select from the Options below
Factory Installed Controls
SKU: FEP36201RA
BTU /hr.: 12286 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray
Brand: TPI
Resources

Hazardous Location Wall Convector TPI FEP36201RA Resources:

Hazardous Location Wall Convector TPI FEP36201RA Specification

Electric Convection Heaters - 3600W Single Phase Hazardous Location Wall Convector - TPI FEP36201RA - 12286 BTU

Get the safe and instant and instant heat with this electric convection heater made by the reputed brand TPI. Model FEP36201RA is Single Phase Hazardous Location Wall Convector . It consumes 3600 wattage and yields an excellent 12286 BTU output. The standard unit (without EPET thermostat or control section) is NEMA 4 rated. Available with stainless steel cartridge element inserted into aluminum finned copper sheath and Cabinet size 18" high, 9" wide and cabinet measuring 18" high and 9" wide.

Hazardous Location Wall Convector TPI FEP36201RA Specifications
UPC686334445191
Watts3600
Btu's12286
Volts208
Amps17.3
Cabinet Length34"
Weight54 Lbs.

Hazardous Location Wall Convector TPI FEP36201RA Features:

  • Cabinet size 18" high, 9" wide
  • Bottom In - Front Out air flow
  • Wall mounting bracket supplied
  • Heavy duty 16 ga. steel with gray epoxy textured powder coated finish
  • 9" minimum clearance from bottom F heater to floor required
  • Stainless steel cartridge element inserted into aluminum finned copper sheath
  • Units can not be operated in room
  • Standard unit (without EPET thermostat or control section) is NEMA 4 rated ambients exceeding 104 F (40 C)
  • Units that exceed 22 Amps may not be controlled by line voltage thermostats
Accessories
Line Voltage Thermostat
TPI
Price $330.55
Line Voltage Thermostat
TPI
Price $349.25
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Line Voltage Thermostat
TPI
Price $240.90
Related ITems
Hazardous Location Wall Convector
TPI
SKU: FEP08271RA
BTU /HR.: 2730 BTU
Fuel Type: Electric
Volts: 277 V
Color: Gray
Hazardous Location Wall Convector
TPI
SKU: FEP36243RA
BTU /HR.: 12286 BTU
Fuel Type: Electric
Volts: 240 V
Color: Gray

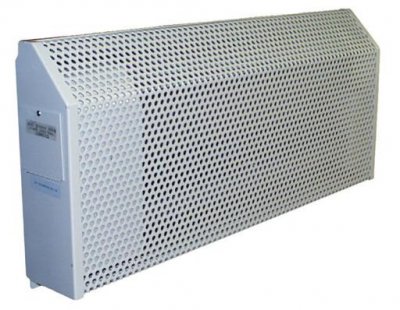

Institutional Wall Convector
