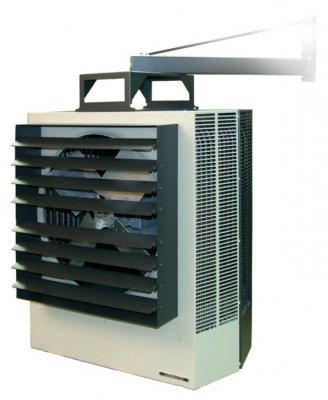

Horizontal / Vertical Fan Forced Heater
TPI

Horizontal / Vertical Fan Forced Heater

HF2B5103N
Price $481.80
Please select from the Options below
Control Option
SKU: HF2B5103N
BTU /hr.: 8500 - 11200 BTU
Fuel Type: Electric
Volts: 208 - 240 V
Color: Ivory
Brand: TPI
Resources

TPI Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater HF2B5103N Resources:

TPI Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater HF2B5103N Specifications

Introducing best quality Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater with 3300 / 2500 Watts of power and 11.2 / 8.5 BTU/Hr. TPI HF2B5103N consists of spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow, 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door that simplifies wiring, installation and maintenance. Louvers are individually adjustable for directional control of air flow up to 15 deg. from straight horizontal.

Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater - TPI HF2B5103N Specifications
BTU11.2 / 8.5
Wattage3300 / 2500 W
Voltage240 / 208 V
Control Volts240 / 208 V
Product Weight25 Lbs.
Product Dimensions14-15/32"W x 6-1/2"D x 17-3/4"H
Phase1 / 3
Temperature Rise26 F
CFM400
Amperage13.7-11.9 / 7.9-6.9
Air Throw12'
Recommended Mounting Height9' Hortz.
9' Vert.
UPC686334645706

Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater - TPI HF2B5103N Features:

    CONSTRUCTION:
  • 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance
  • HEATING ELEMENT:
  • Spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow
  • OVERHEAT PROTECTION:
  • Equipped with automatic reset type limit to de-energize the heater should an over-temperature situation occur.
  • FAN and MOTOR:
  • Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motor with unit bearings
  • Fan over-ride purges unit of residual heat at shutdown
  • LOUVER ASSEMBLY:
  • Louvers are individually adjustable for directional control of air flow up to 15 deg. from straight horizontal
  • Optional diffusers available for down flow (vertical discharge) applications
  • TEMPERATURE CONTROLS:
  • Optional low voltage and line voltage thermostats available with an adjustable temperature range of 50-90 deg. F
  • INSTALLATION:
  • It can be mounted for horizontal or vertical discharge
  • Suggested for applications up to 6000 feet
  • FIELD INSTALLED OPTIONS:
  • In-Built or wall mounted temperature control thermostats - low or line voltage
  • Summer fan switch to operate the fan only.
  • Power disconnect switch
  • Heat stratification thermostat
  • cETLus listed
