HW
Washdown Unit Heater
TPI

Washdown Unit Heater

H3H5505T
Price $2,664.20
Please select from the Options below
Disconnect Switch
SKU: H3H5505T
BTU /hr.: 17100 BTU
Fuel Type: Electric
Volts: 240 V
Color: Stainless Steel
Brand: TPI
Resources

TPI Washdown Unit Heater H3H5505T Resources:

TPI Washdown Unit Heater H3H5505T Specification

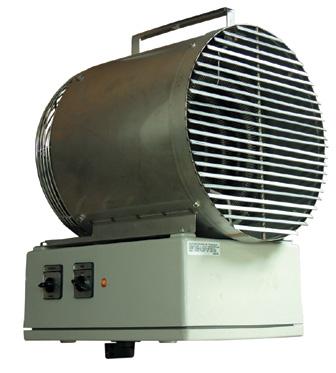

Forced Air HeatersTPI 5 KW, 240V Fan Forced Washdown Unit Heater - H3H5505T

We present you 5 KW Fan Forced Washdown Unit Heater by TPI. Model H3H5505T is equipped with 17100 BTU, heavy duty 304 16 ga. stainless steel shroud, inlet grill, 24-volt control, 3-position switch, capillary style thermostat, automatic reset thermal cutout and totally enclosed motor. Control panel is constructed on bottom of unit for ease of installation and service. This ABS Type approved is amongst the best unit heaters available in the market.

Fan Forced Washdown Unit Heater - TPI H3H5505T Specifications
Wattage5 KW
BTU17100
Voltage240
Phase3
Ampere12.1
Control Voltage24
Temperature Rise40 F
Air Throw20'
CFM400
Dimensions19.75"H x 12"W x 18"H
Weight58 Lbs.
UPC686334713146

Fan Forced Washdown Unit Heater - TPI H3H5505T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout. Totally enclosed motor.
  • Pilot light (power on indicator)
  • Stainless Steel finned tubular element; Monel elements available, consult factory.
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Powder coated epoxy painted stainless steel model available, consult factory
  • Minimum mounting height is 7' for all units
  • ABS Type Approved
Accessories
Hanging Mount Bracket
TPI
Price $198.55
Line Voltage Thermostat
TPI
Price $104.15
